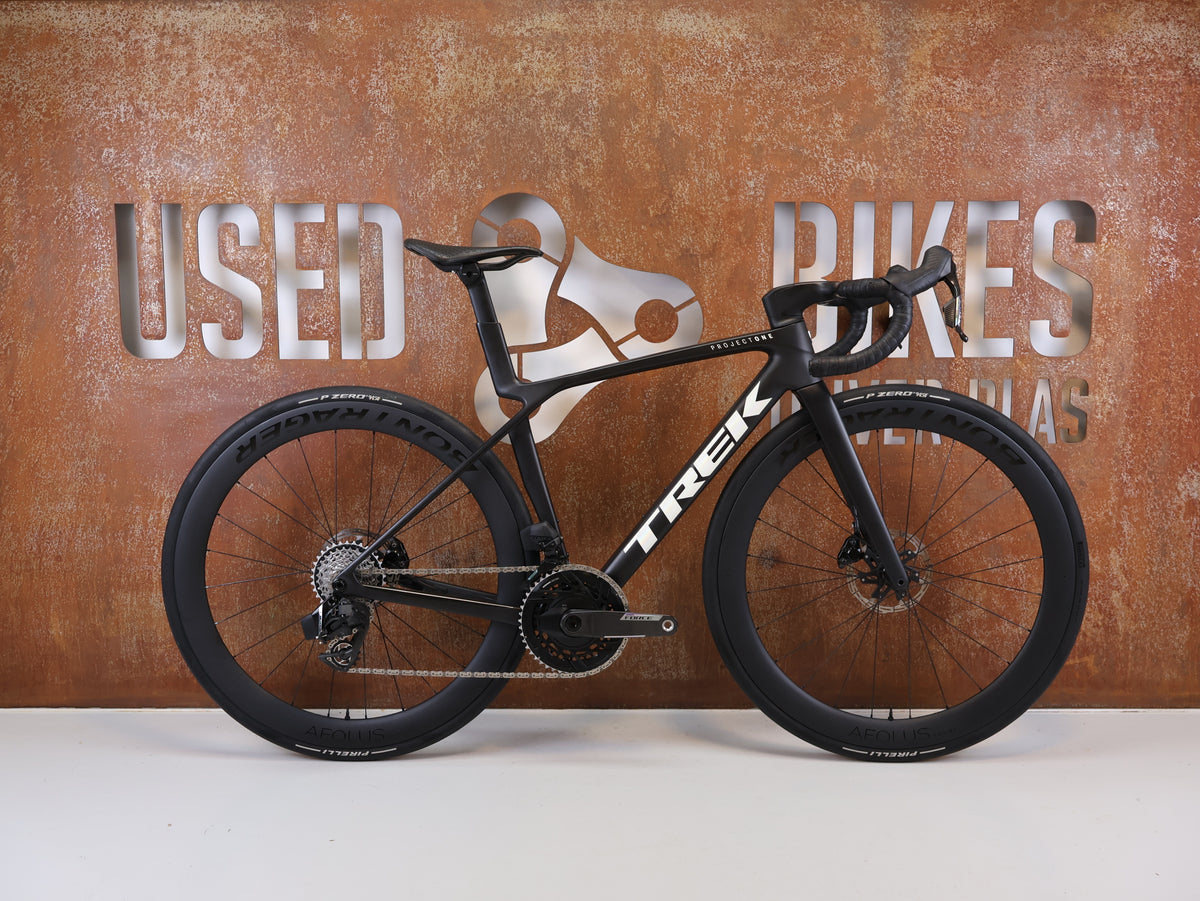

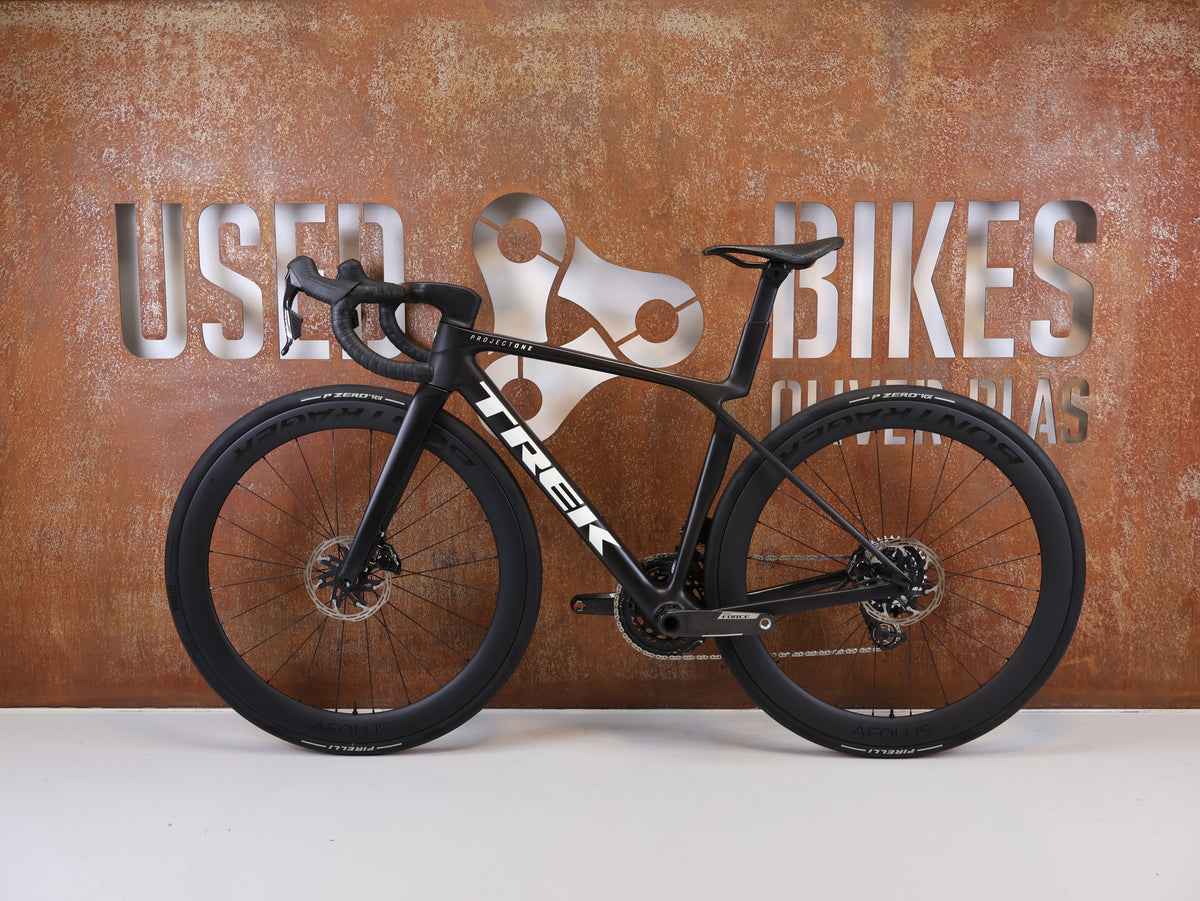

TREK MADONE SLR 7 AXS GEN 8 (OCLV 900 CARBON | FRAME SIZE S | MATTE DEEP SMOKE | SRAM FORCE AXS E1 POWERMETER | BONTRAGER AEOLUS PRO 51 | TREK AEOLUS PRO AIRLOOM SADDLE | 7.34 KG)
The Trek Madone SLR 7 AXS Gen 8 combines the explosive aerodynamics of an aero superbike with the climbing agility of a road bike. Crafted from Trek's exclusive **900 Series OCLV Carbon** with Full System Foil tube profiles and the revolutionary **IsoFlow technology**, it offers noticeably more vertical compliance and comfort without compromising power transfer or aerodynamics.
Equipped with the wireless **SRAM Force AXS E1 2x12 groupset including a dual-sided power meter** (48/35T chainrings, 10-33T cassette), the aerodynamic **Bontrager Aeolus Pro 51 OCLV Carbon wheels**, and fast **30 mm Pirelli P Zero Race TLR tires**, this bike is designed for maximum racing speed. The cockpit has been optimized for performance: The one-piece **Trek Aero RSL handlebar/stem unit** (37 cm top handlebar / 40 cm bottom handlebar with a compact 80 mm stem length) is mounted directly on the headset for an uncompromising race position (steerer tube cut, slammed / without spacers). The state-of-the-art **Trek Aeolus Pro saddle with innovative AirLoom grid structure (145 mm wide)** and lightweight carbon rails perfectly rounds off this 7.34 kg lightweight dream setup in the elegant Matte Deep Smoke color.
Features & Technical Data
• Brand / Model: Trek / Madone SLR 7 AXS (Gen 8)
• Frame Size: S (Manufacturer part number: 5339171 | EAN: 197216236429)
• Color: Matte Deep Smoke

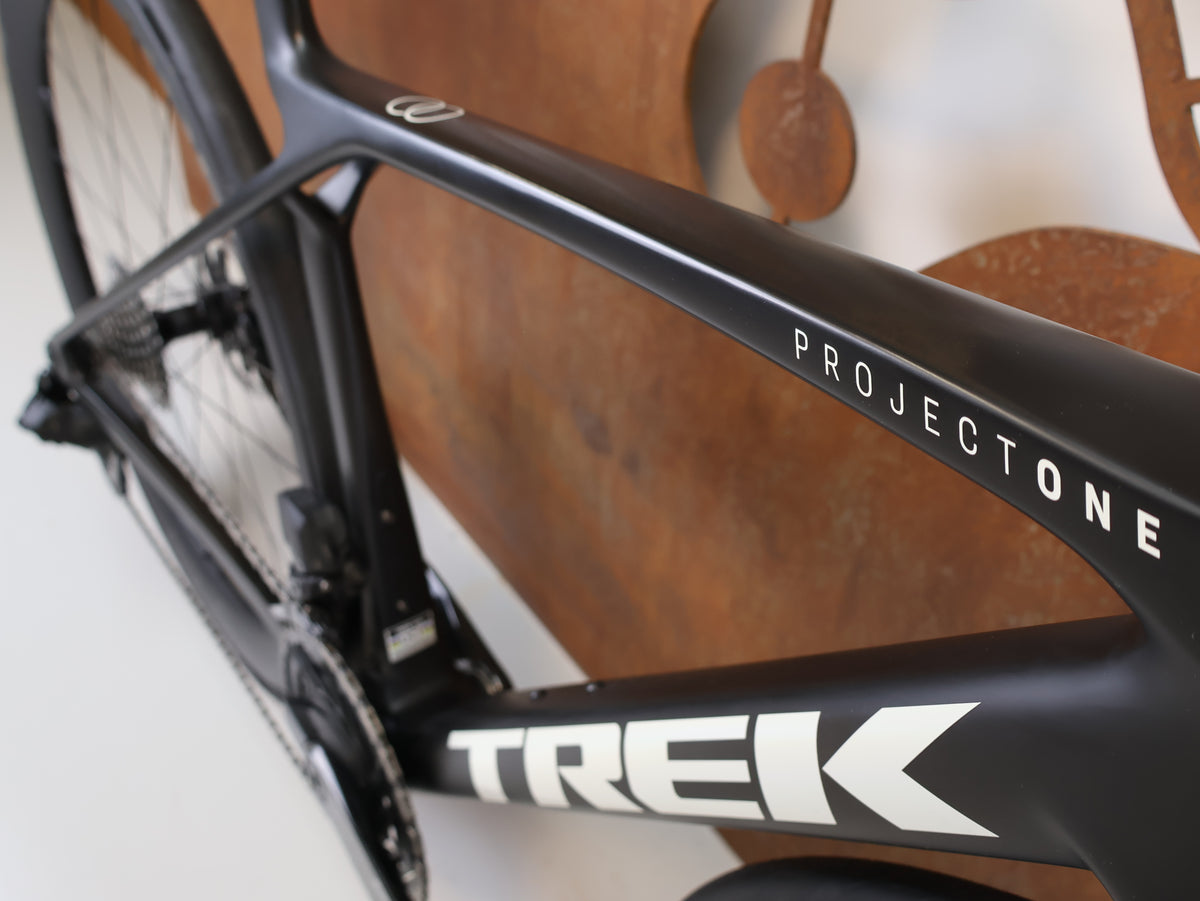

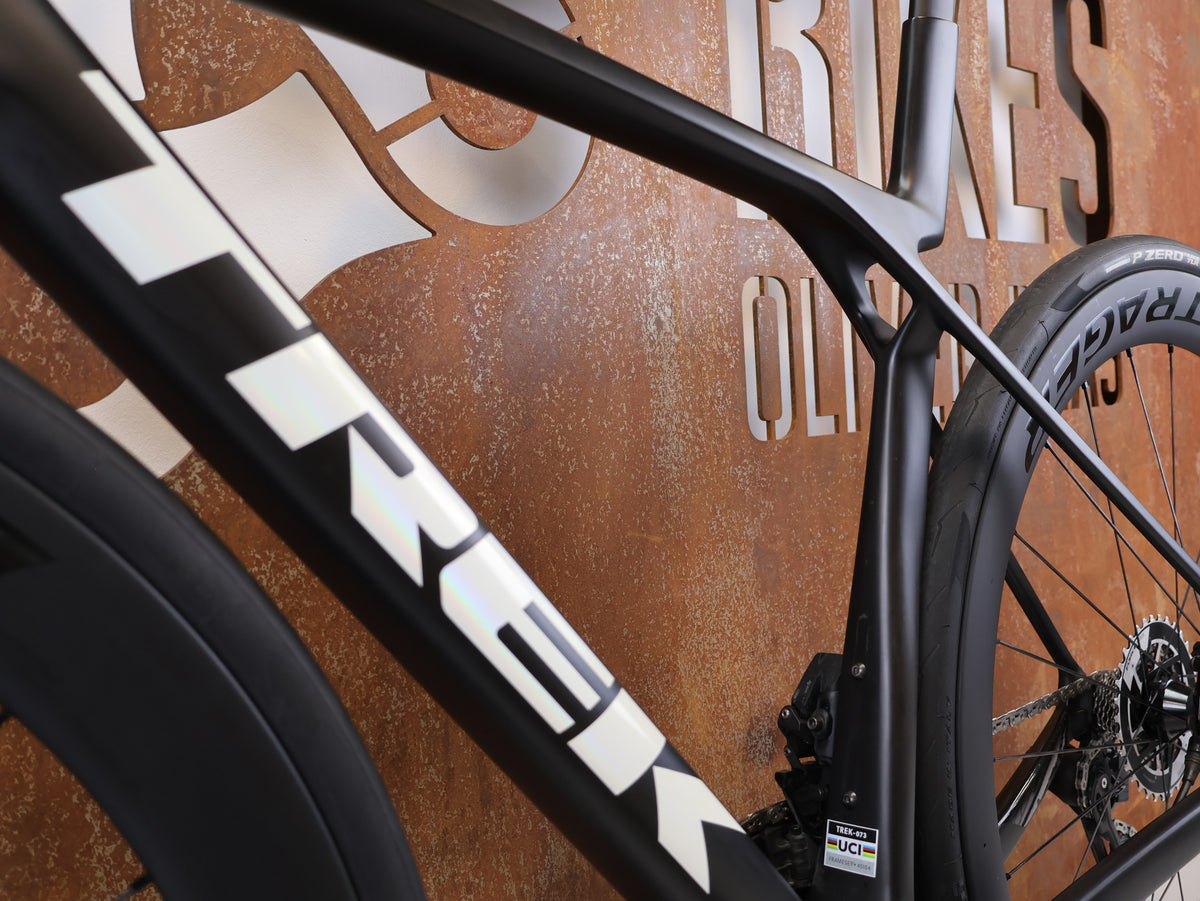

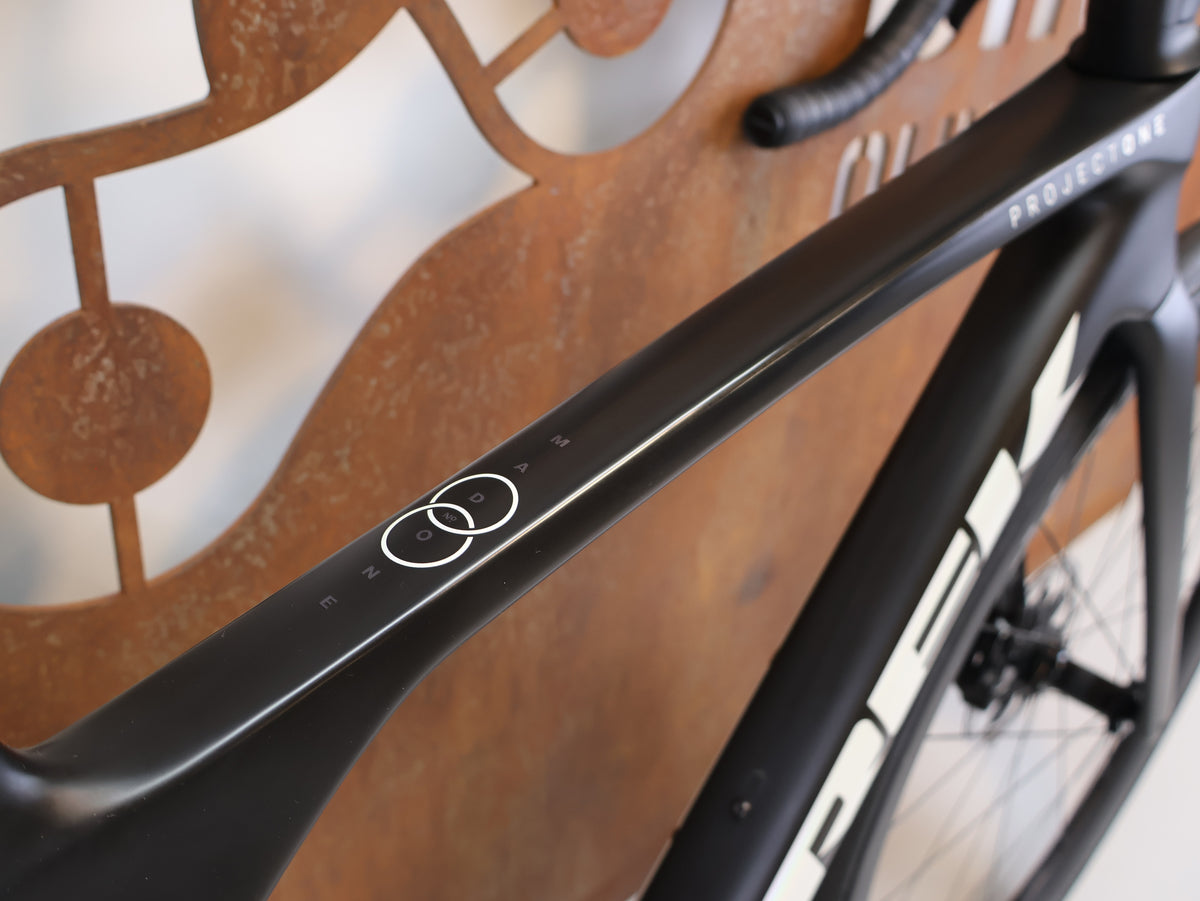

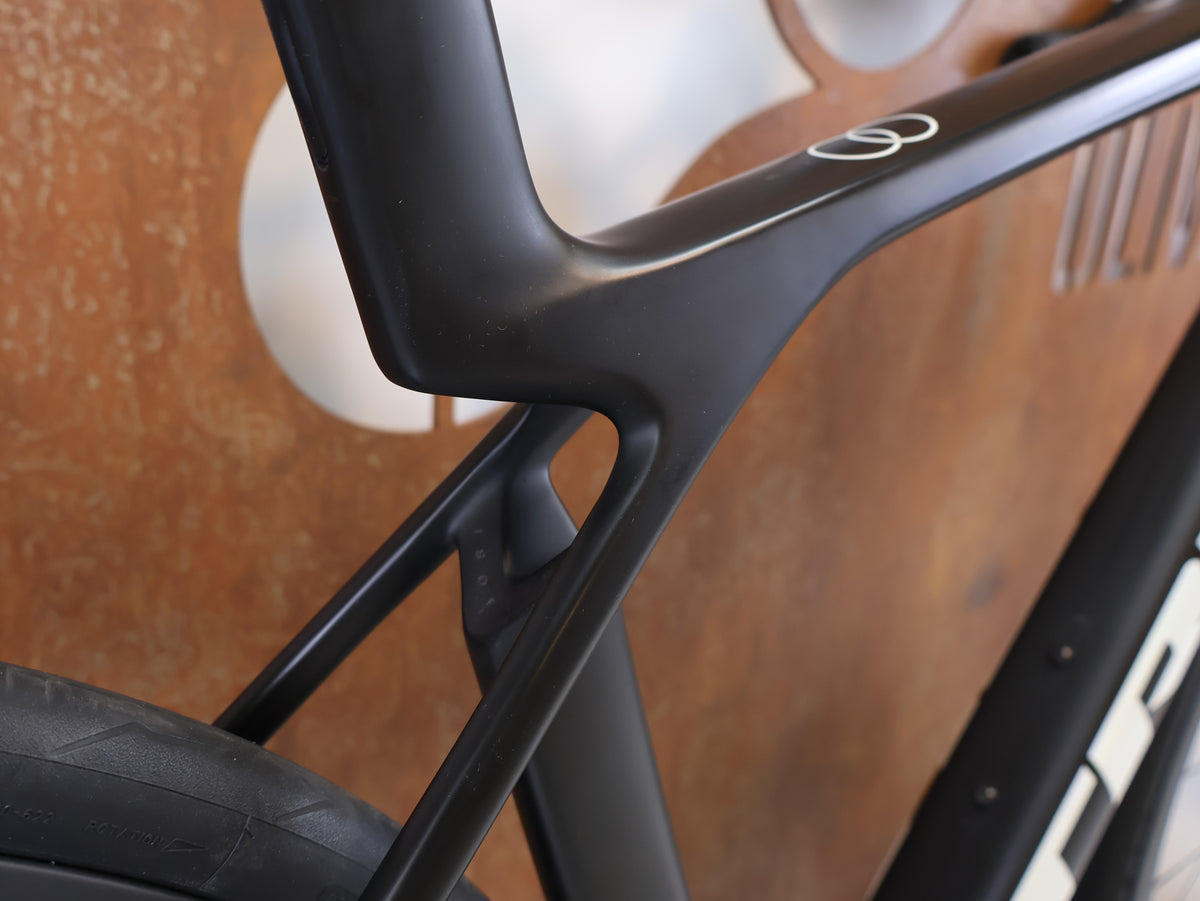

• Frame Material: 900 Series OCLV Carbon, IsoFlow seat tube, RCS Headset System, Flat Mount, UDH, 142x12 mm thru-axle

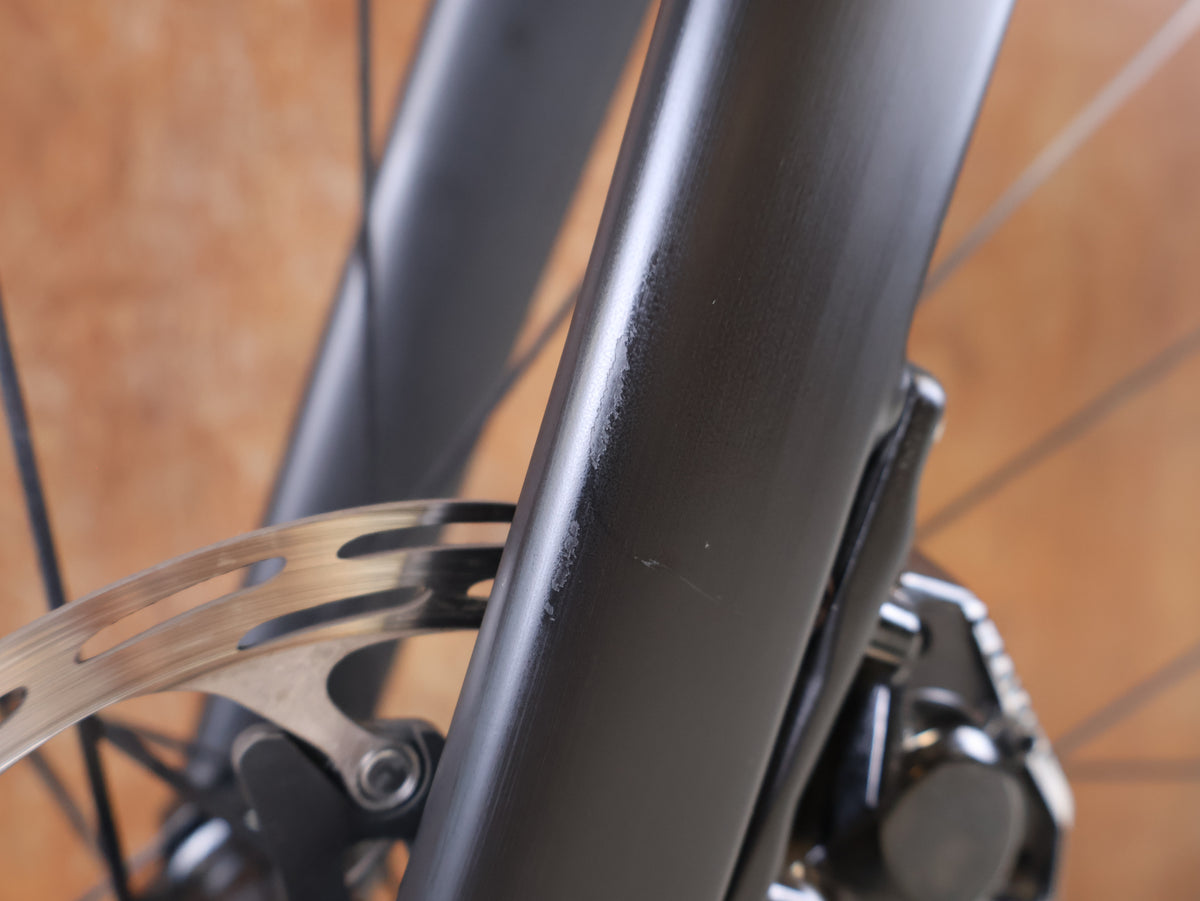

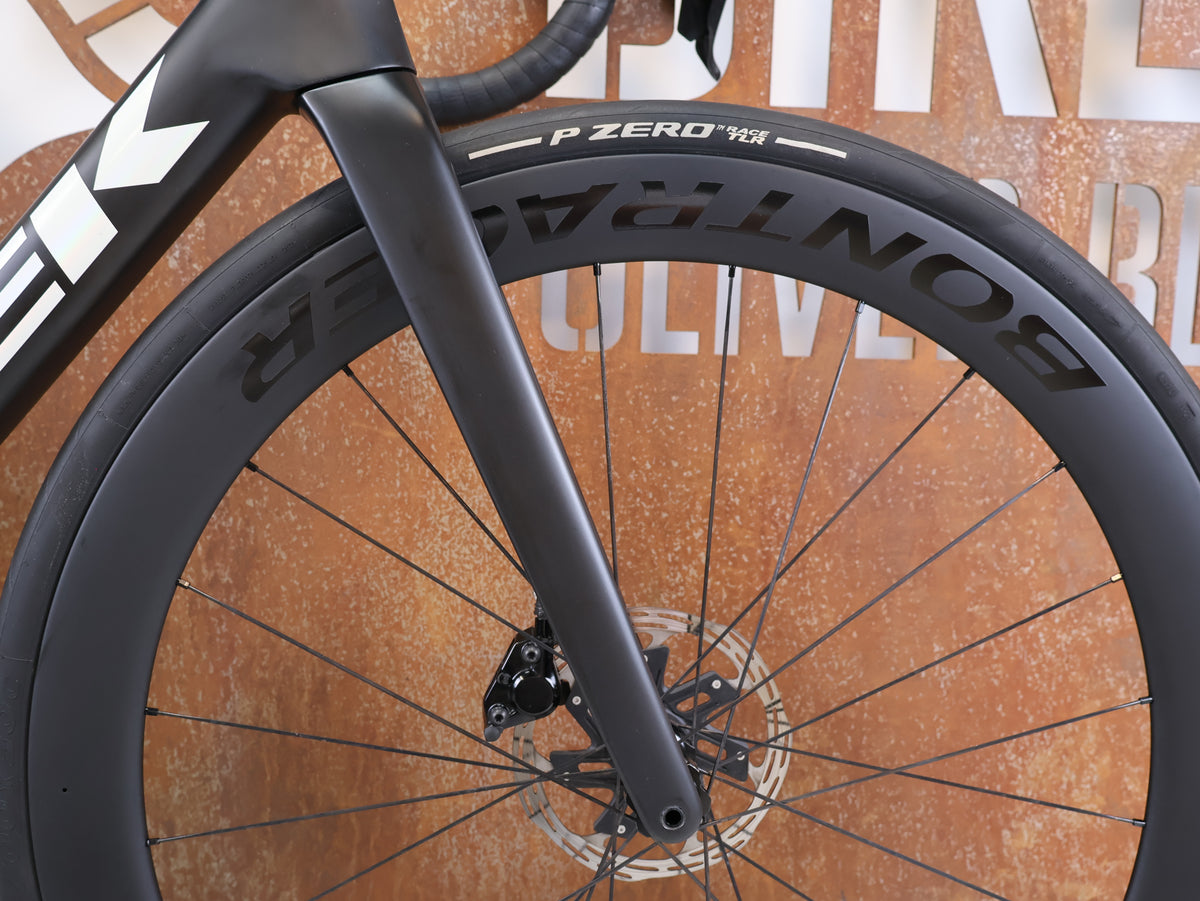

• Fork: Madone Gen 8 full carbon, tapered steerer tube, Flat Mount, 100x12 mm thru-axle (steerer tube cut, installed slammed without spacers)

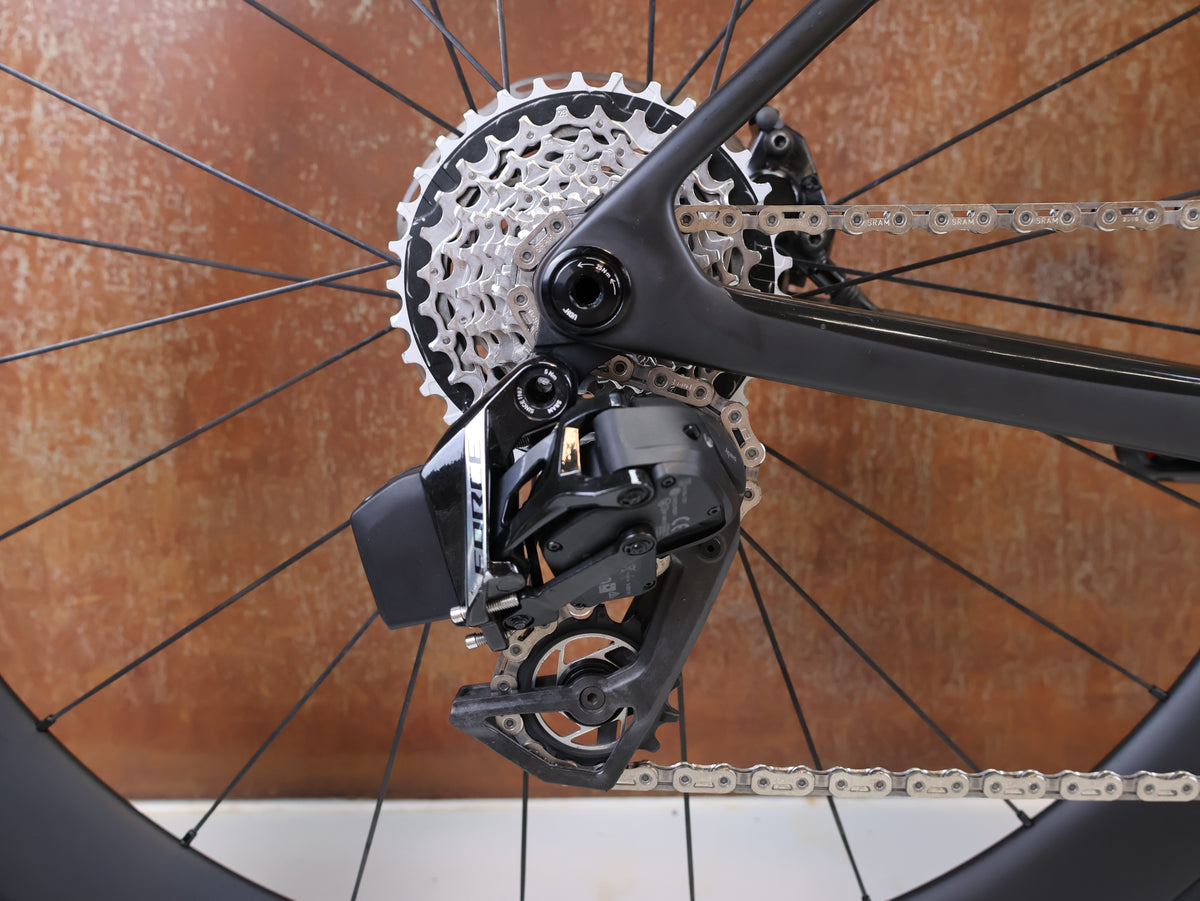

• Groupset: SRAM Force AXS E1 (2x12-speed, fully wireless eTap AXS)

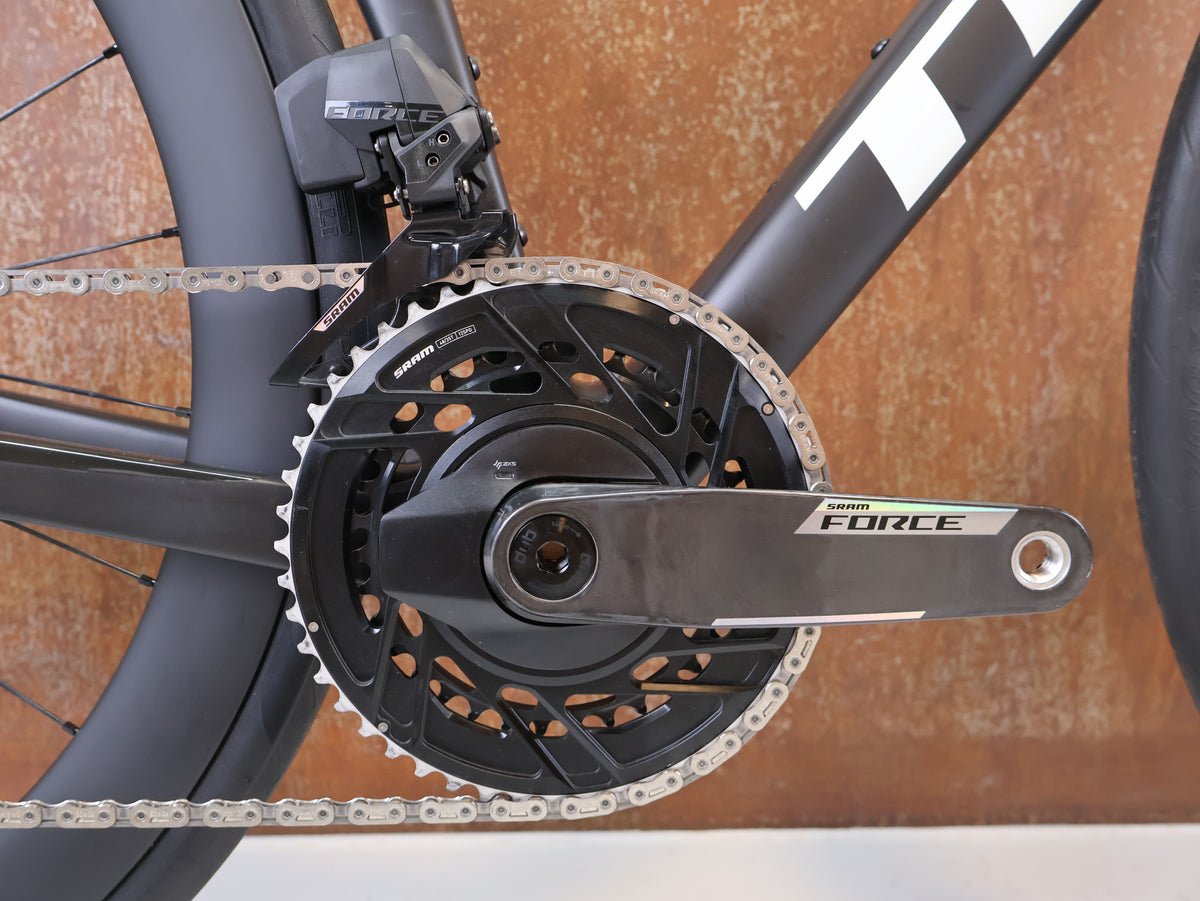

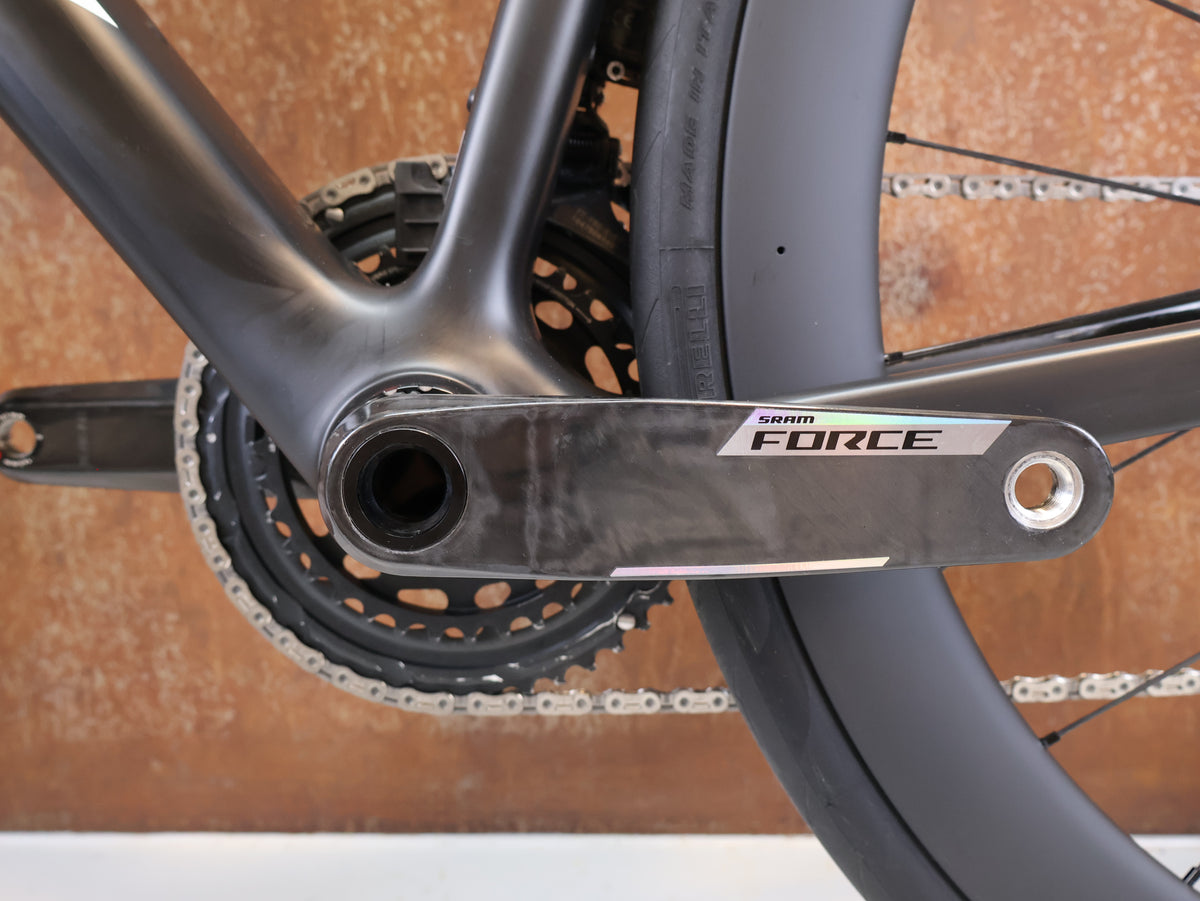

• Crankset & Power Meter: SRAM Force AXS DUB crankset with integrated power meter, 48/35T chainring configuration

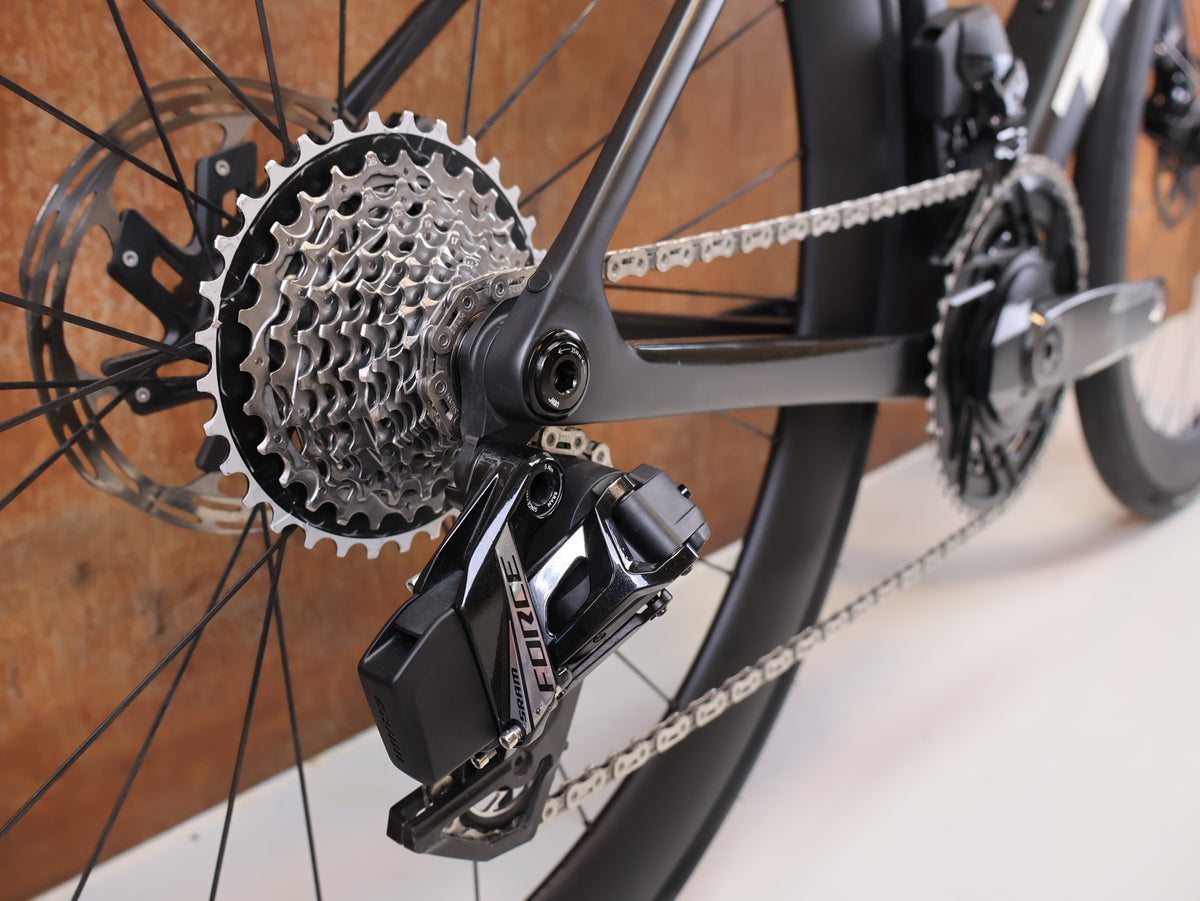

• Cassette: SRAM Force XG-1270, 10-33T (12-speed)
• Chain: SRAM Force E1 Flattop
• Bottom Bracket: SRAM DUB T47 threaded (internal)

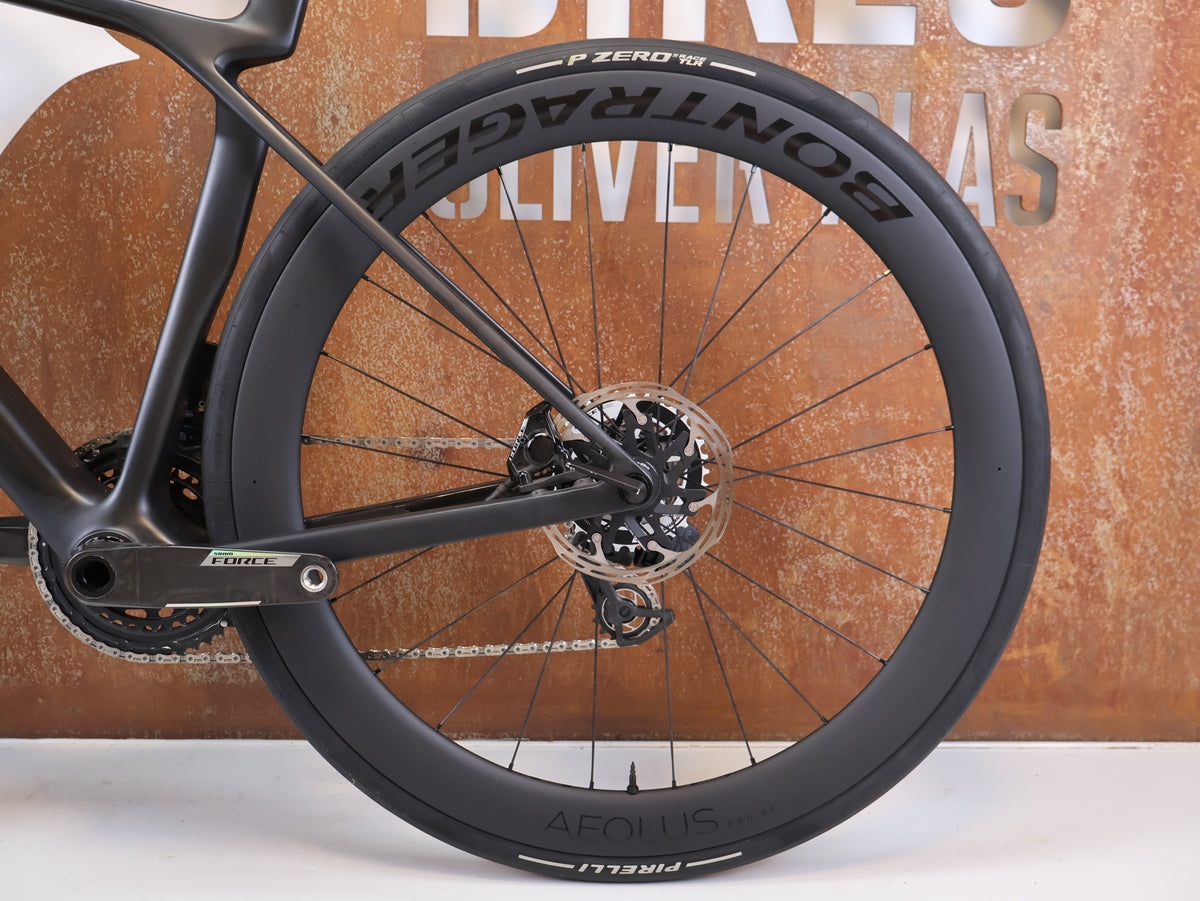

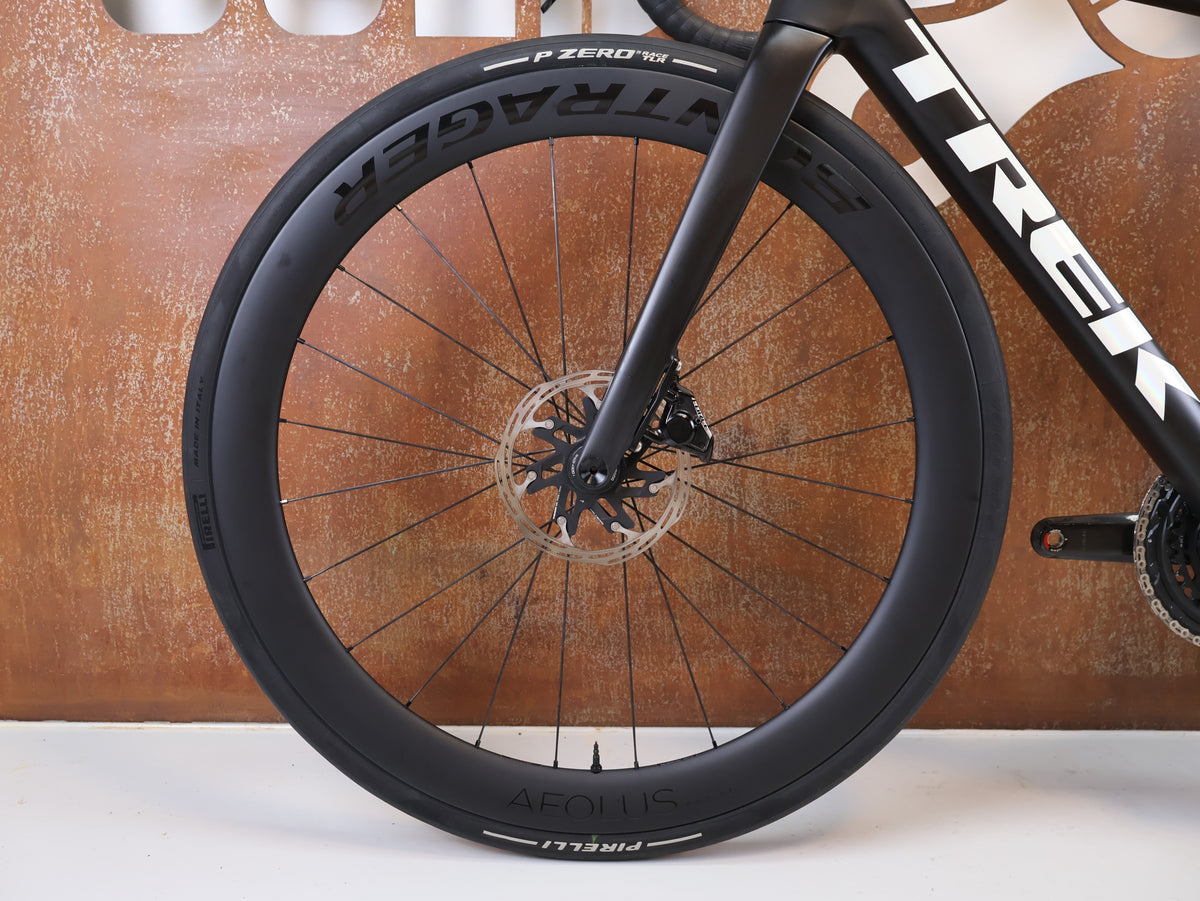

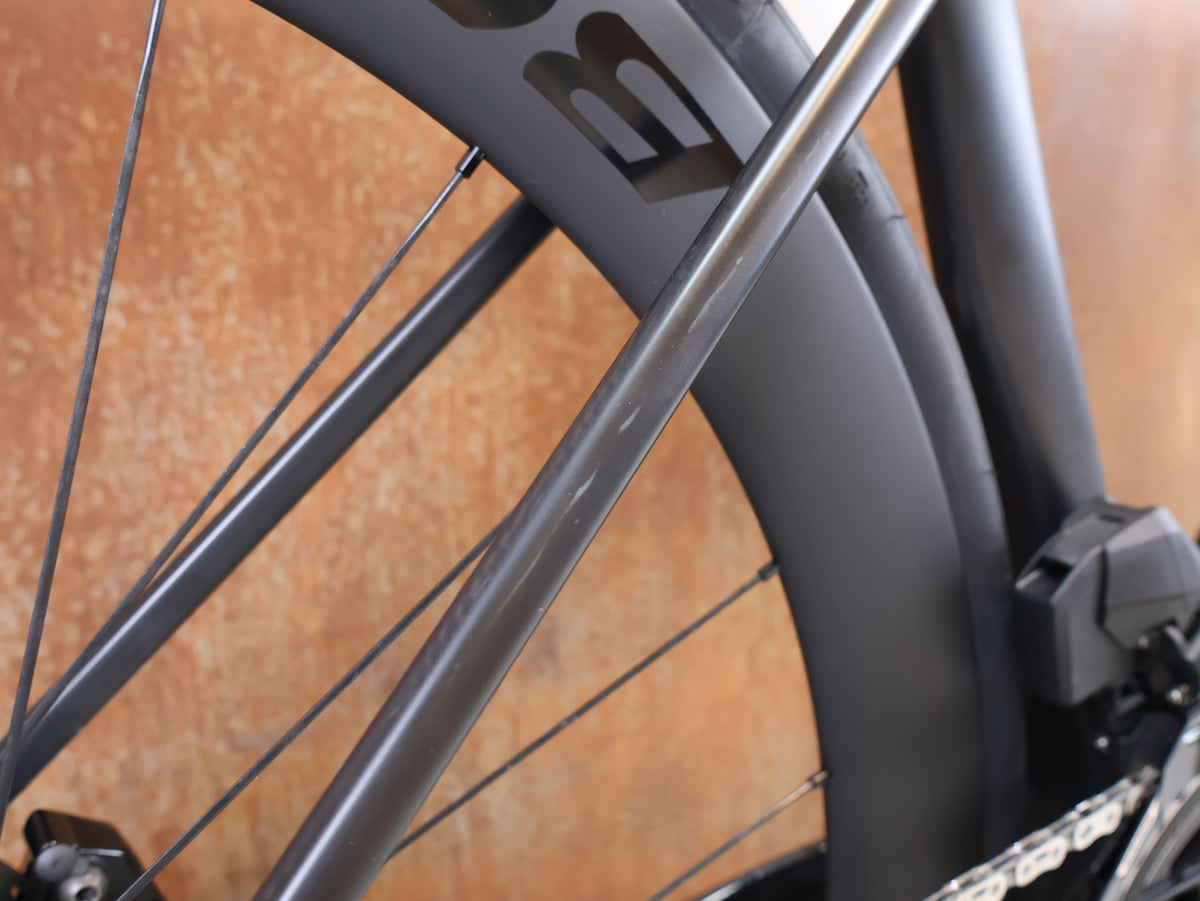

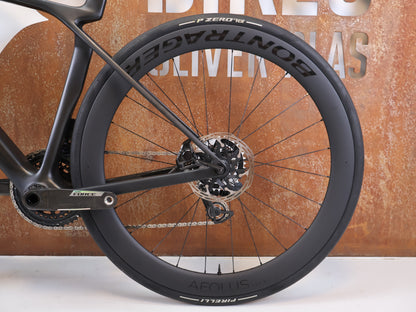

• Wheels: Bontrager Aeolus Pro 51 OCLV Carbon, Tubeless Ready, 51 mm rim profile, SRAM XDR freehub body
• Tires: Pirelli P Zero Race TLR, Tubeless Ready, 700 x 30 mm

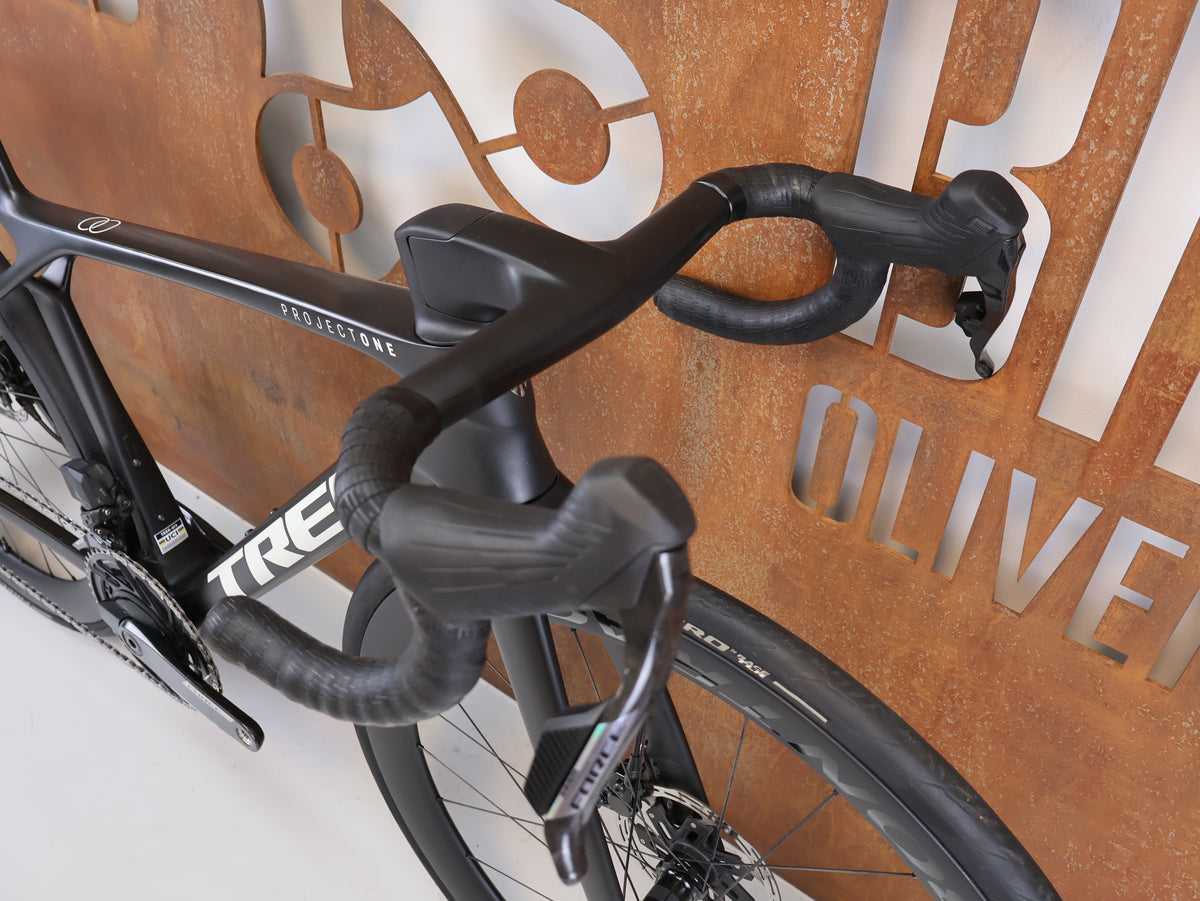

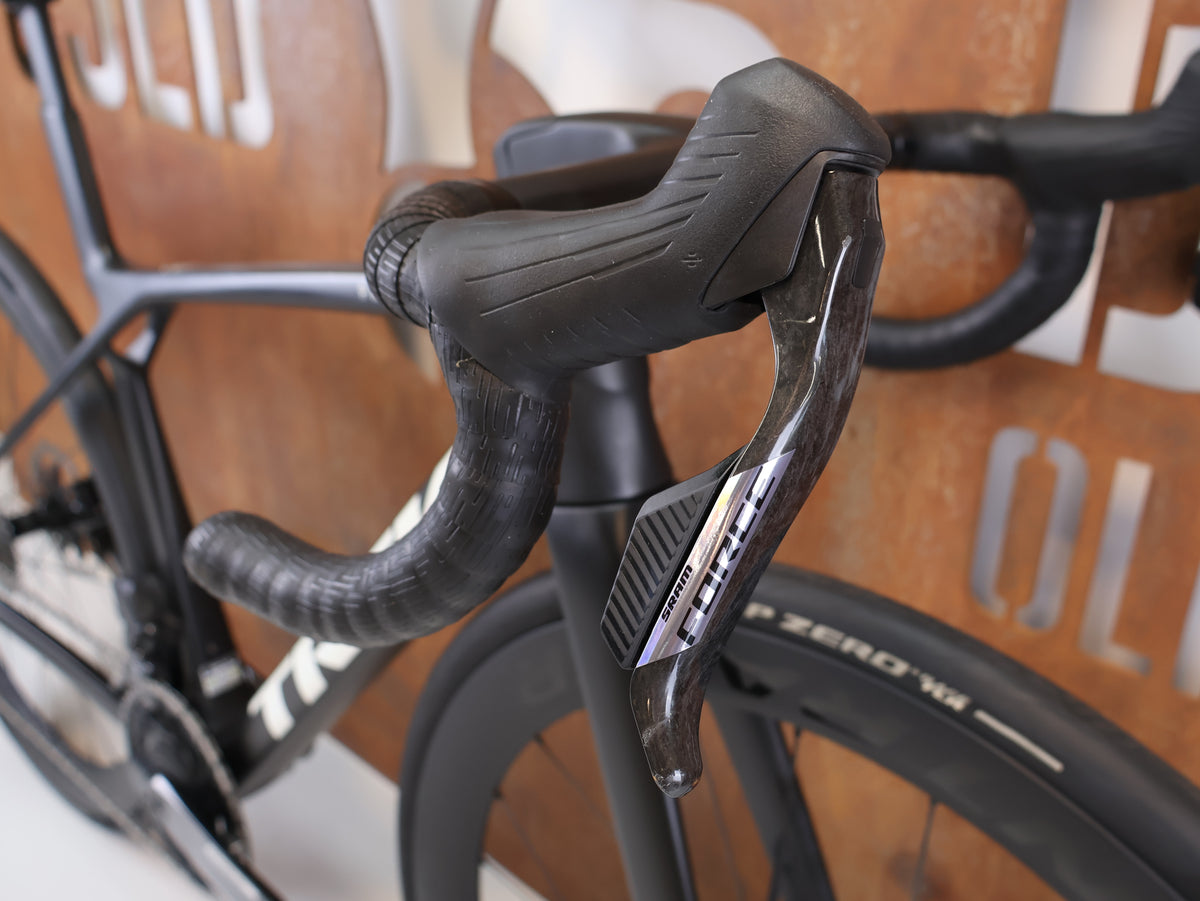

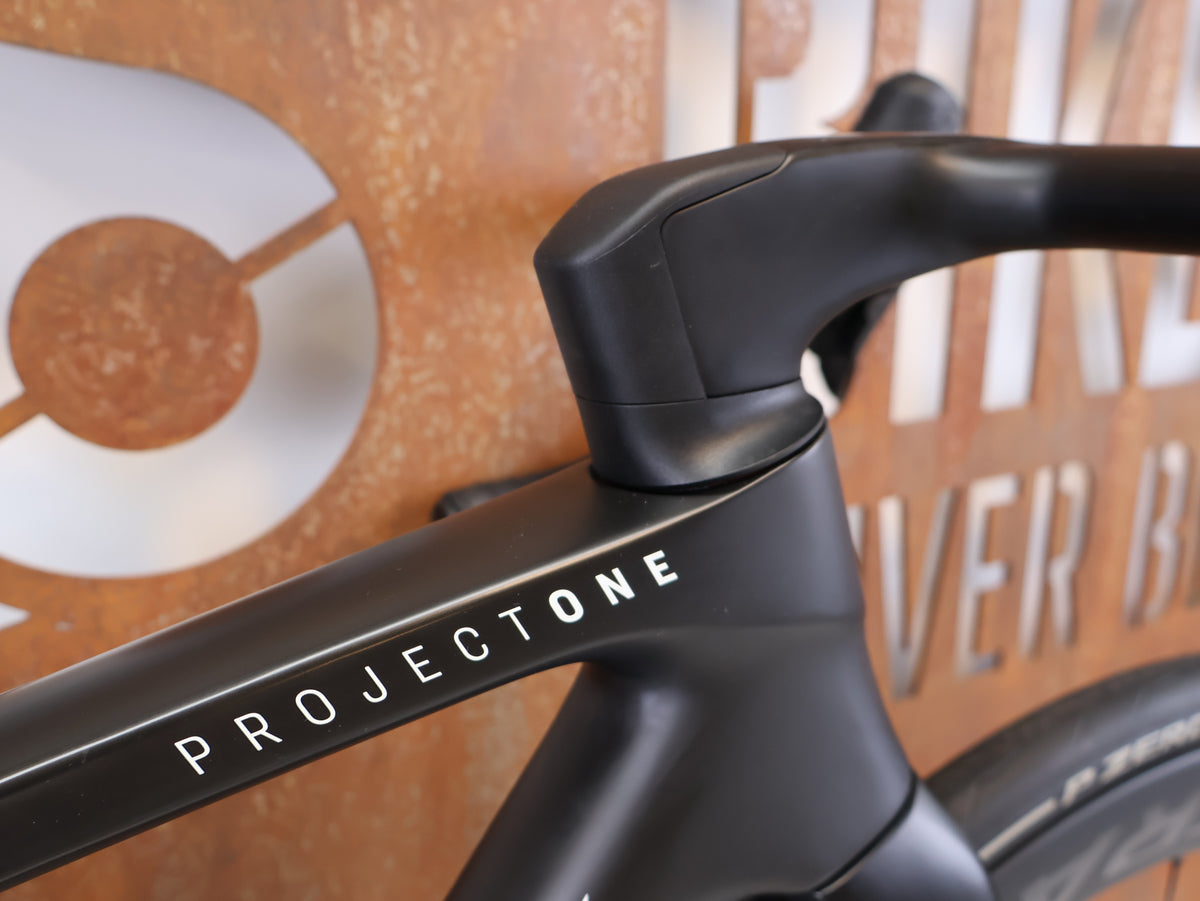

• Cockpit (integrated): Trek Aero RSL Road OCLV Carbon (Top width: 370 mm / Bottom width: 400 mm | Stem length: 80 mm | Reach: 80 mm | Drop: 124 mm)

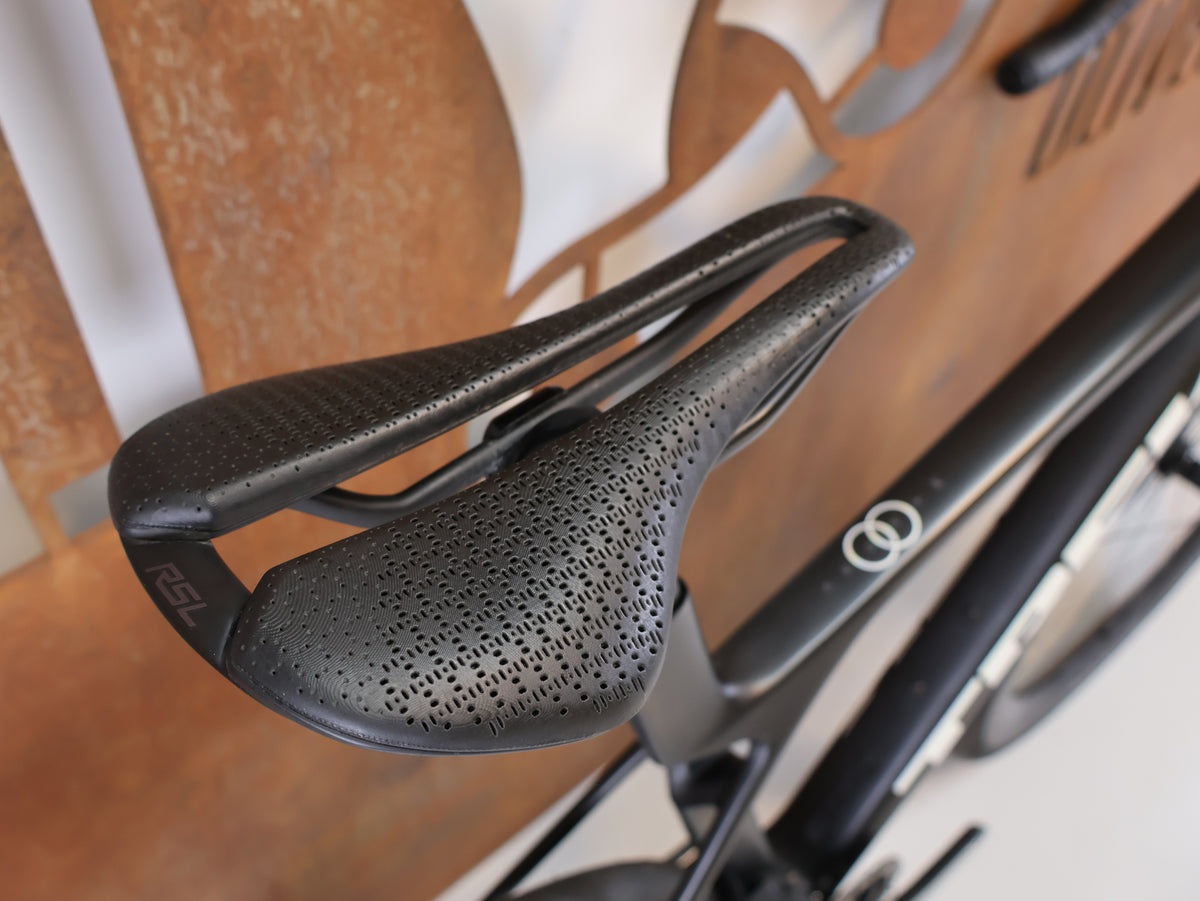

• Saddle: Trek Aeolus Pro with AirLoom grid structure and carbon rails (Width: 145 mm)
• Seatpost & Seat Height Adjustment Range (Short seatpost installed):
– Measurement from center of bottom bracket to seatpost clamp: min. 58.5 cm / max. 64.8 cm
– Effective overall seat height (incl. approx. 3.5 cm saddle height): min. approx. 62.0 cm to maximum 68.3 cm
– Note for longer inseam lengths: For a higher seat height, the long seatpost is required (adjustment range of the long version: 62.8 cm min. to 69.0 cm max. to the seatpost clamp).

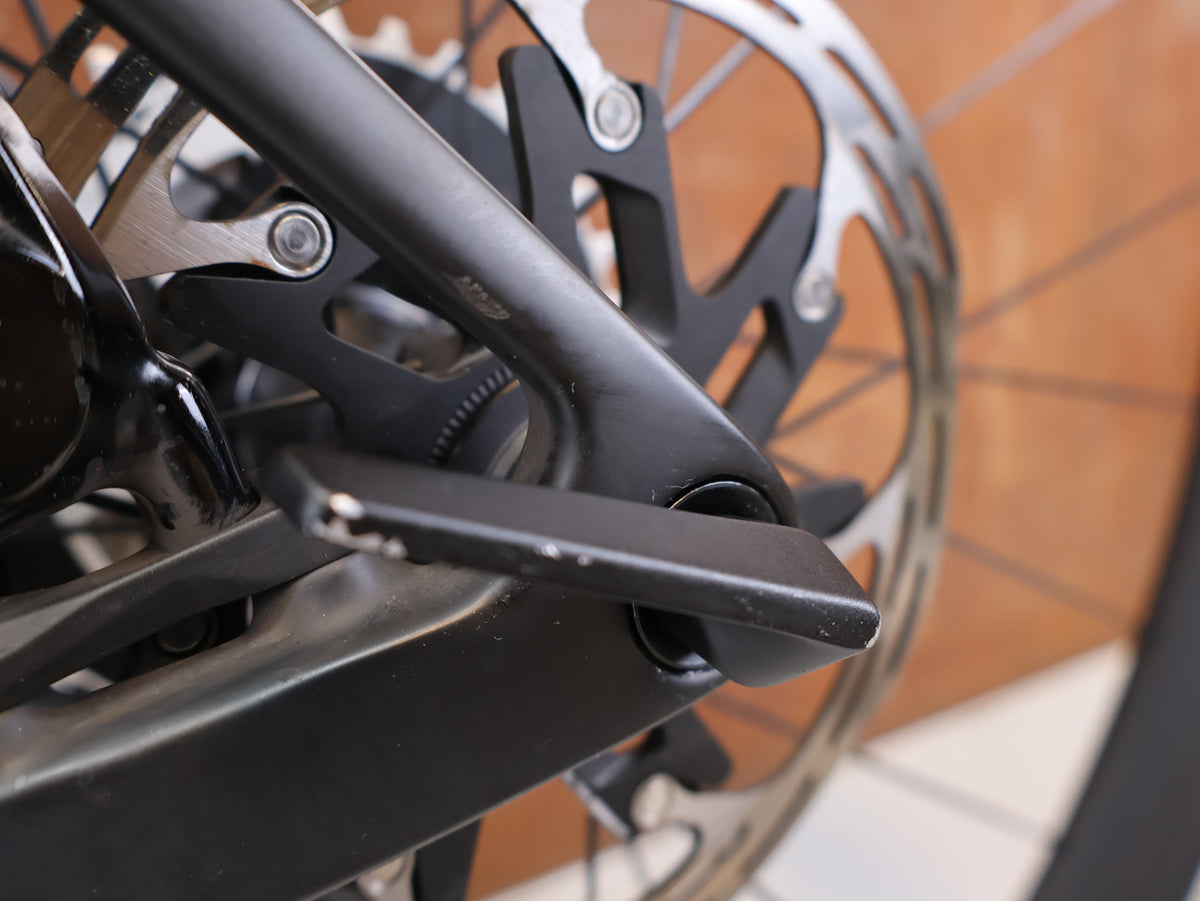

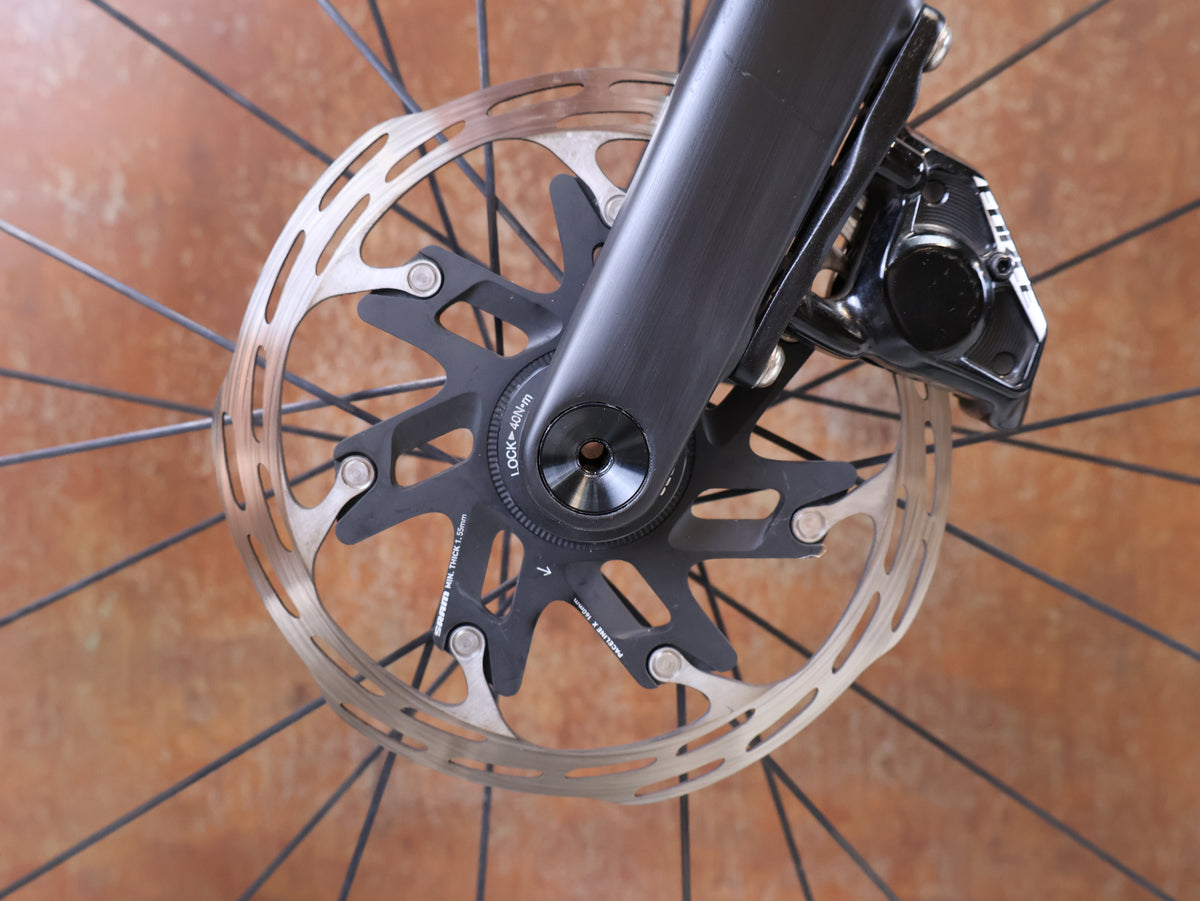

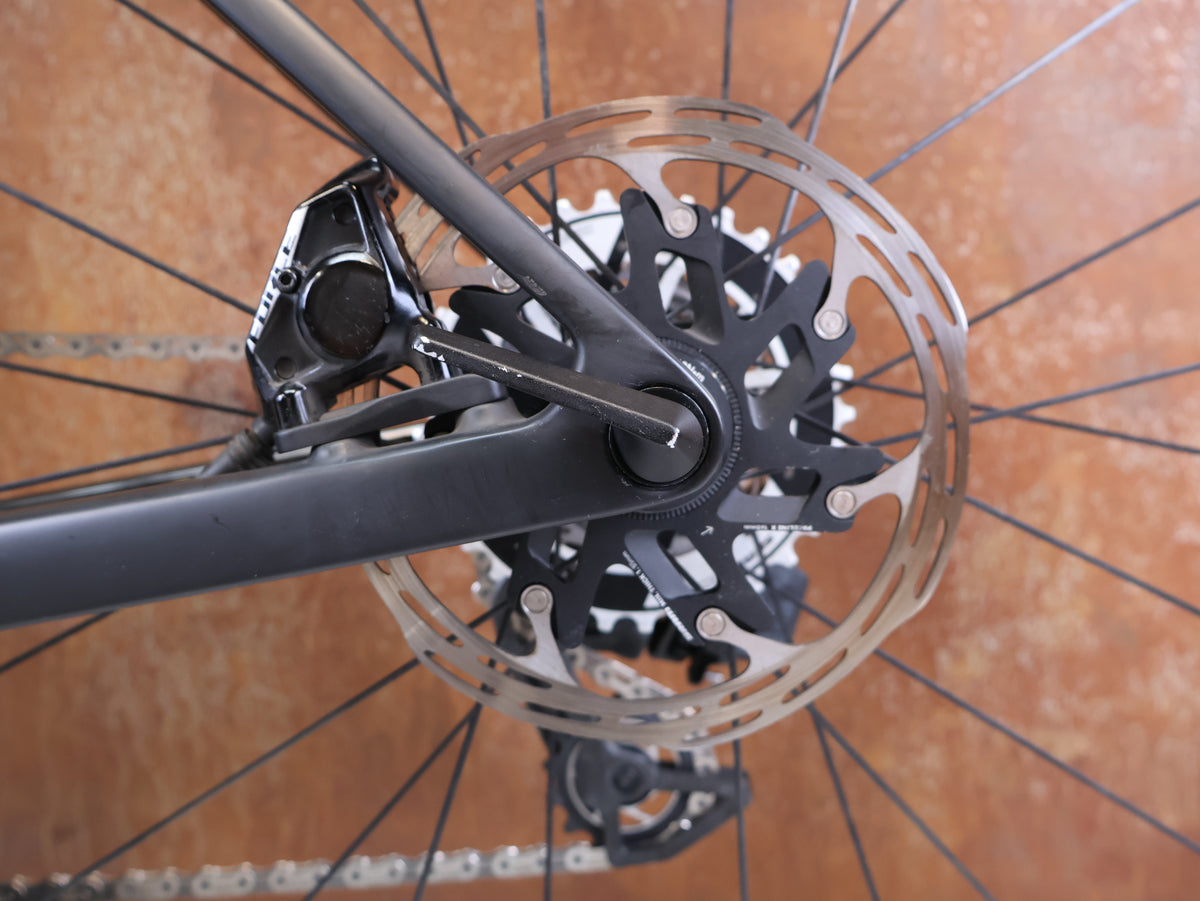

• Brake System: SRAM Force AXS hydraulic disc brakes (Flat Mount) with Center Lock brake rotors (160 mm front & rear)
• Weight (weighed): approx. 7.34 kg
• Maximum Permissible System Weight: max. 125 kg (bicycle, rider, and luggage)
Scope of Delivery
1x Trek Madone SLR 7 AXS Gen 8 road bike (Size S, Matte Deep Smoke, short seatpost), 2x SRAM AXS batteries incl. SRAM charger & charging cable, Bontrager Switch thru-axles.
Conclusion
The ultimate aero and climbing machine: The Trek Madone SLR 7 Gen 8 in frame size S shines with 900 Series OCLV Carbon, slammed RSL Aero cockpit, SRAM Force AXS power meter, AirLoom saddle, and Bontrager Aeolus Pro 51 wheels at a featherlight 7.34 kilograms.
