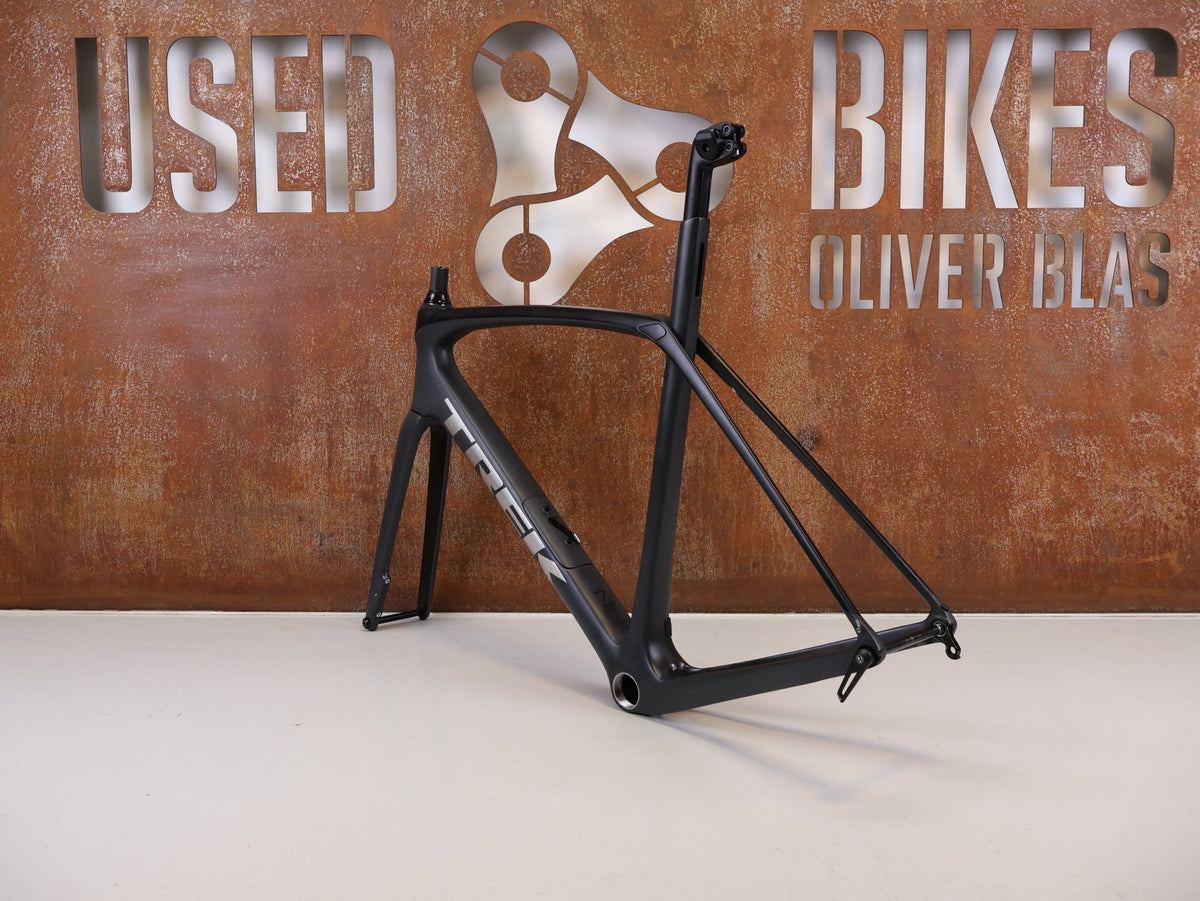

Trek Domane SL 7 Frame Set Size 56 cm Carbon IsoSpeed / 2020
Trek Domane SL 7 Frame Set Size 56 cm Carbon IsoSpeed / 2020
Anwendung der Differenzbesteuerung (§ 25a UStG)
Couldn't load pickup availability
TREK DOMANE SL 7 CARBON FRAME SET (FRAME SIZE 56 CM | TIRE CLEARANCE UP TO 38 MM / 35C WITH MUDGUARDS | ENDURANCE GEOMETRY | 500 SERIES OCLV CARBON | ISOSPEED | T47 | 2.46 KG)

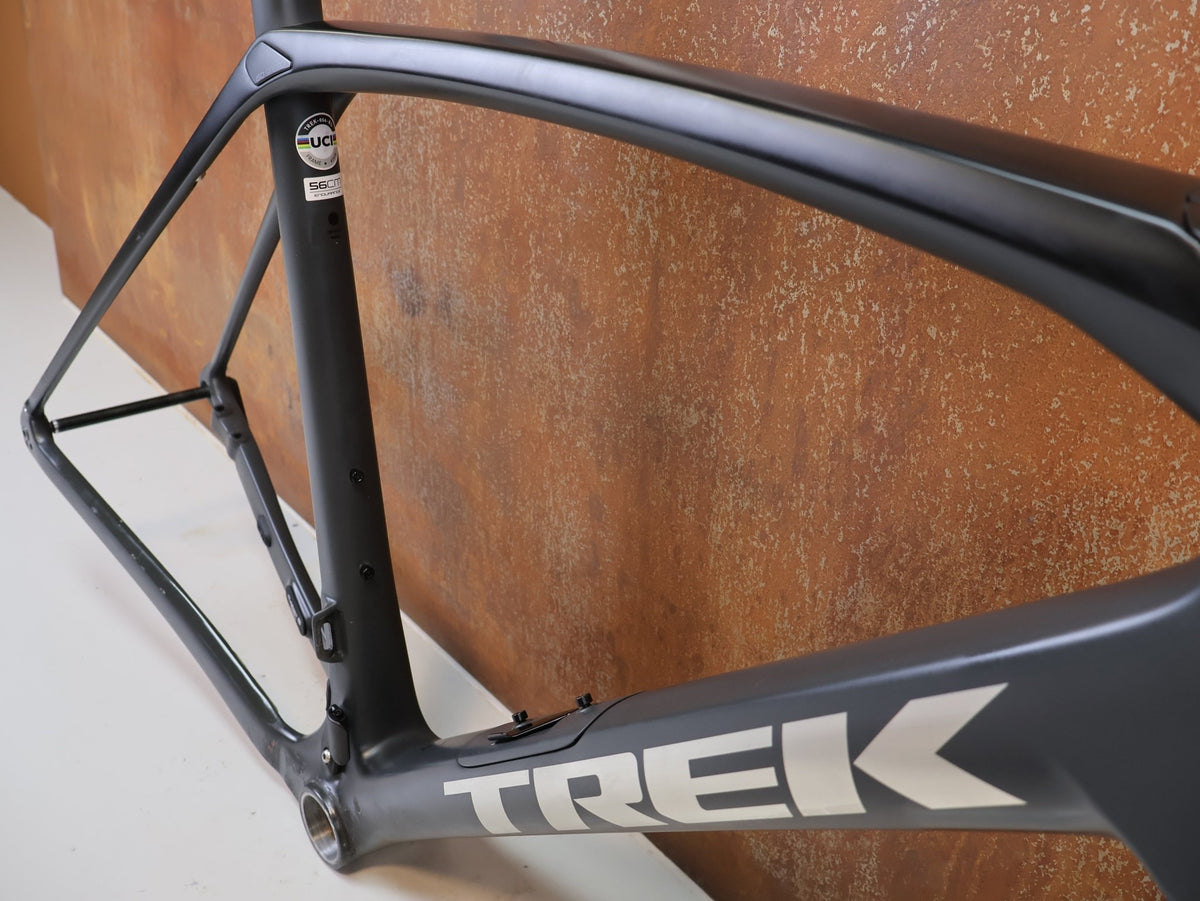

The Trek Domane SL 7 frame set is the benchmark for long-distance endurance, vibration damping, and all-road performance. Crafted from high-quality 500 Series OCLV Carbon, the dual IsoSpeed system at the front and rear effectively smooths out fatiguing road imperfections without compromising drive stiffness. The generous tire clearance of up to 38 mm (according to the manufacturer, up to 35C with mudguards installed) makes the set extremely versatile for asphalt, rough side roads, and gravel. The balanced endurance geometry (Reach 377 mm / Stack 591 mm) guarantees a comfortable riding position with maximum tracking stability. The integrated BITS storage compartment in the down tube holds puncture repair tools directly in the frame.

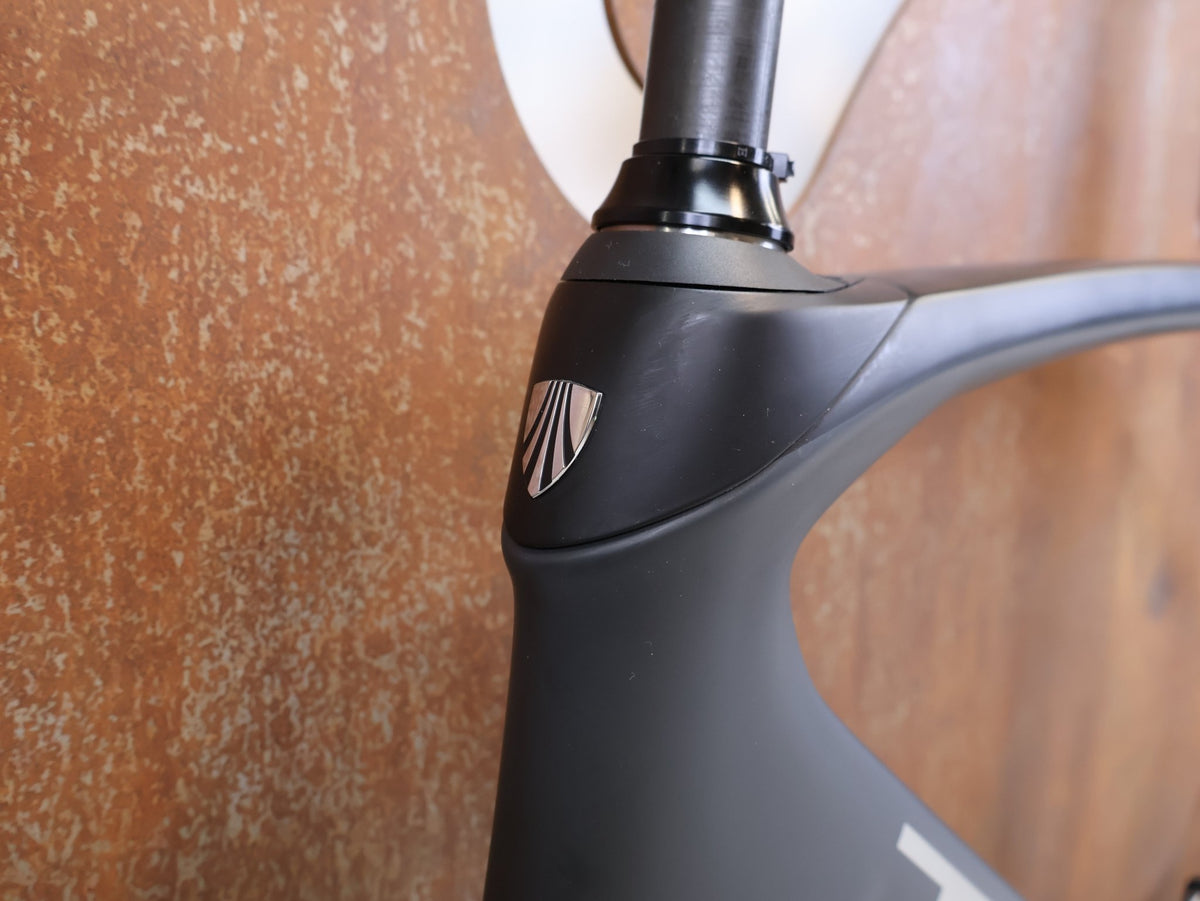

The steerer tube has 4 cm of carbon steerer extension above the approx. 15 mm headset cover. The original carbon seatpost insert (short, 20 mm offset, 7x10 mm carbon clamp) offers an adjustable range from a minimum of 67 cm to a maximum of 73 cm (center of bottom bracket to center of seat tube) – plus individual saddle height adjustment. Equipped with a T47 bottom bracket, Flat Mount mounts, and Bontrager Switch thru-axles with removable lever. Total weight as pictured: 2.46 kg.
Features & Technical Data
- Brand / Model: Trek / Domane SL 7 Disc frame set
- Frame size: 56 cm
- Geometry: Trek Endurance Fit (Reach: 377 mm | Stack: 591 mm)
- Tire clearance: Up to 38 mm (maximum 35C with mudguards according to the manufacturer)
- Seat height adjustment range: Min. 67 cm to max. 73 cm (measured from center of bottom bracket to center of seat tube; plus saddle height adjustment)
- Color: Matte Charcoal / Trek Black

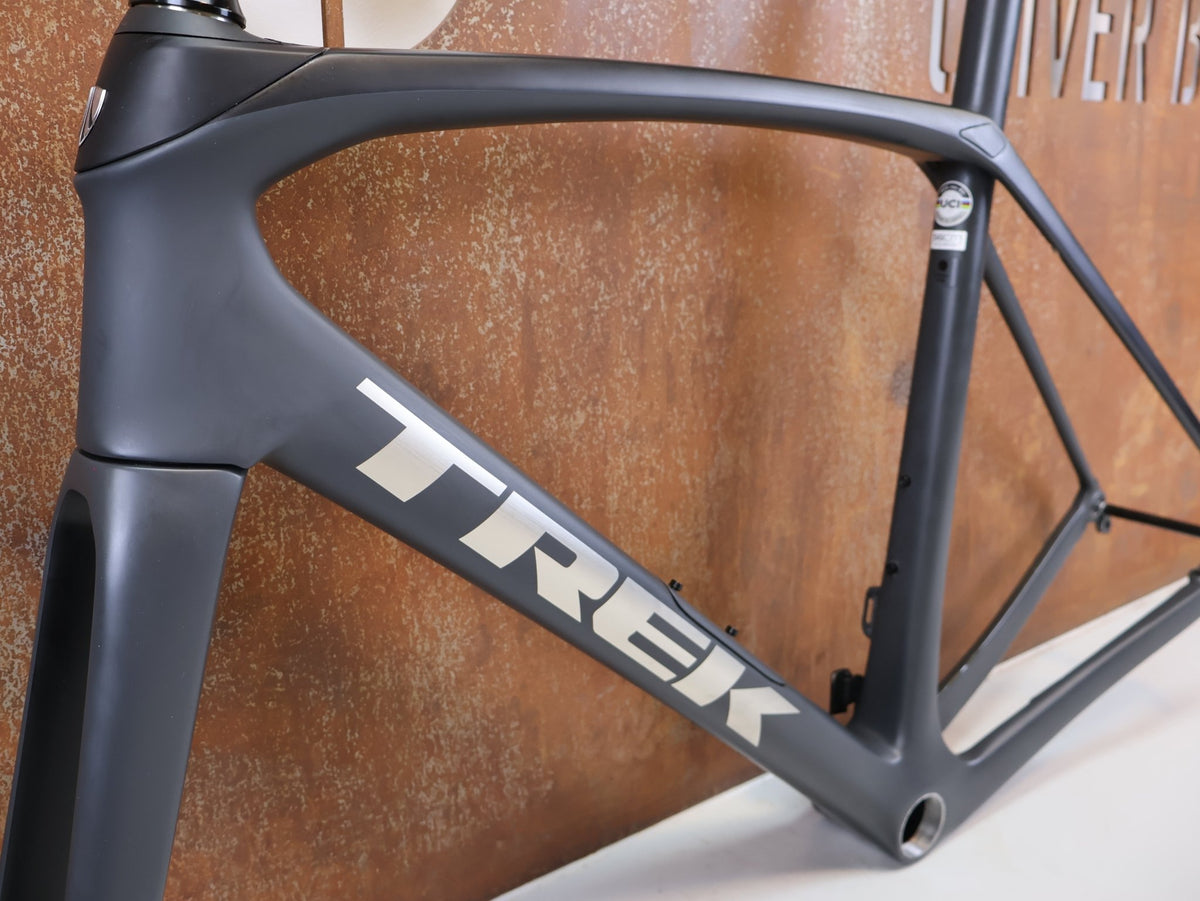

- Frame material: 500 Series OCLV Carbon (internal cable routing, 3S chain routing, DuoTrap S compatible)

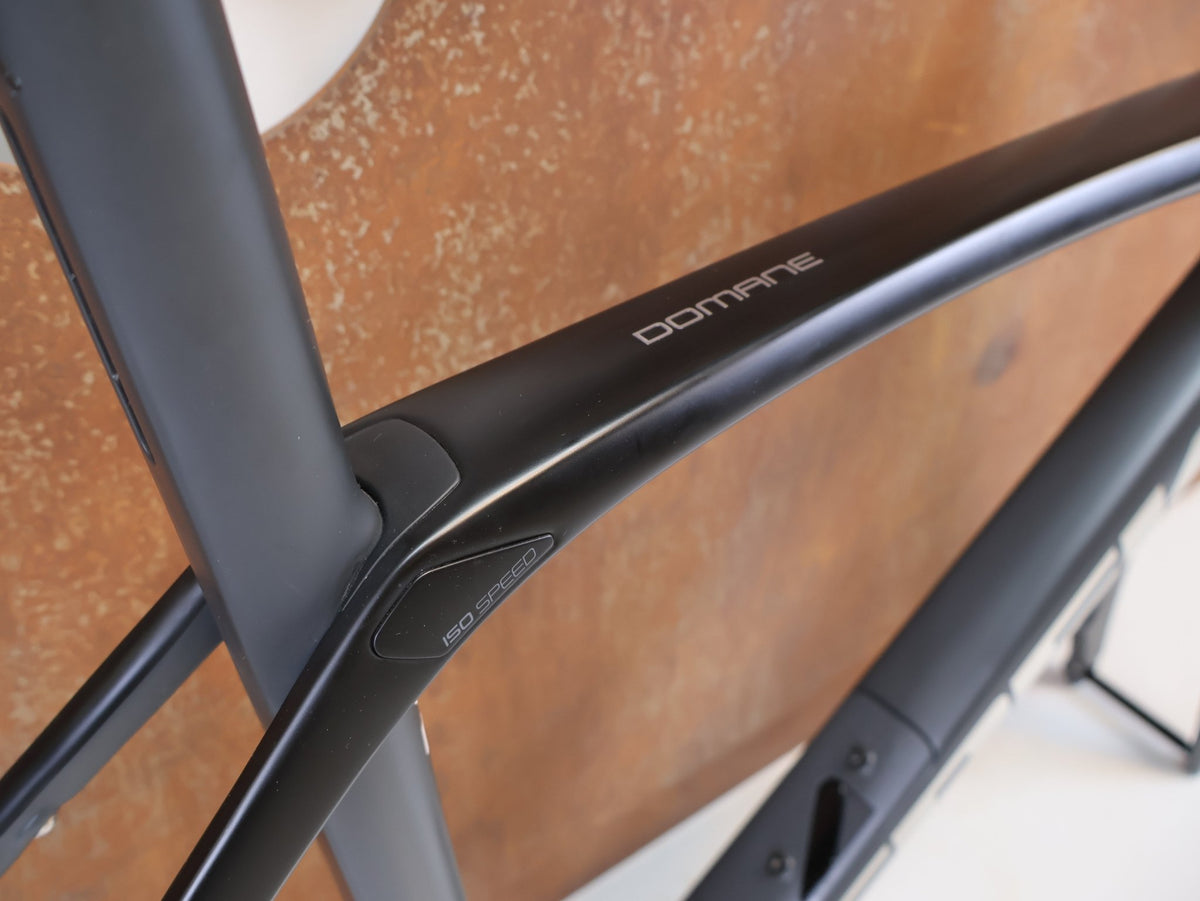

- Damping technology: Front and rear IsoSpeed decoupling system

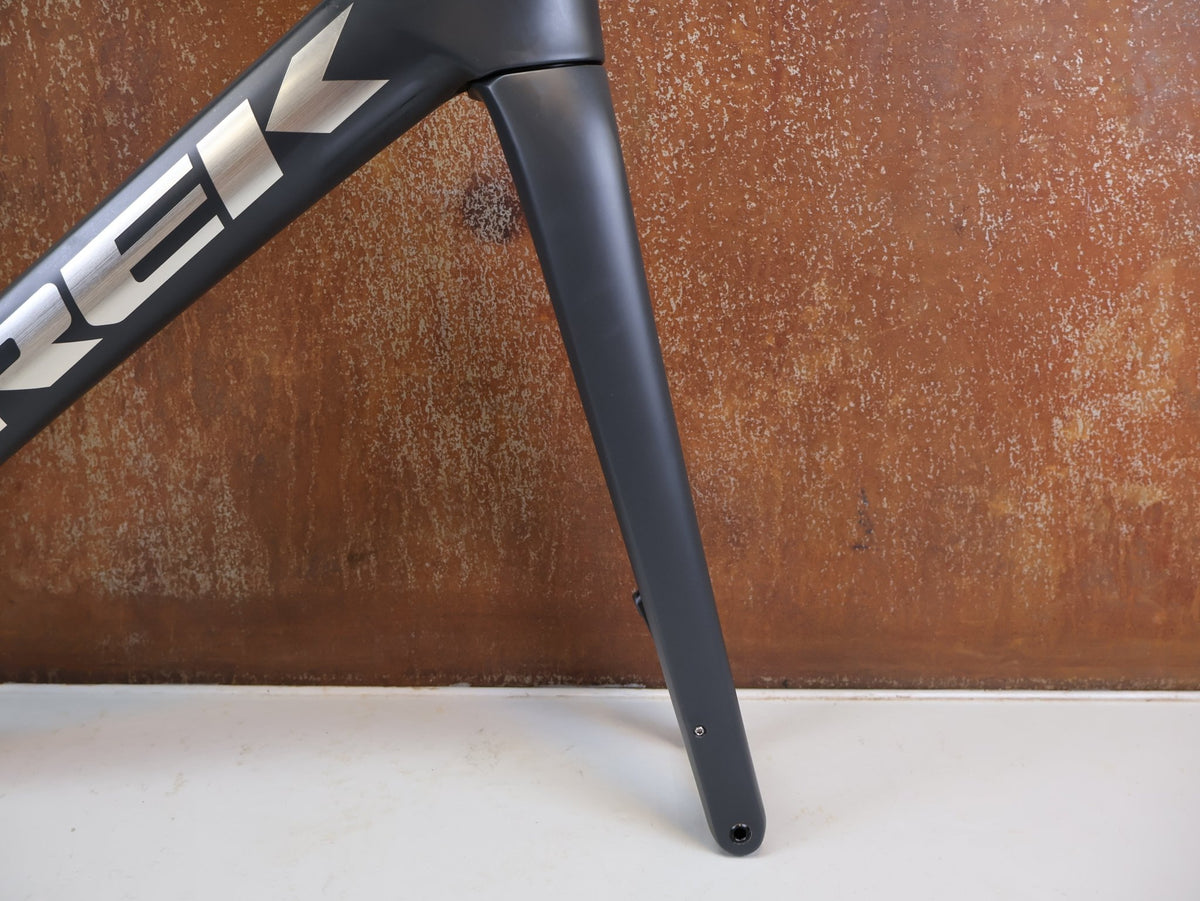

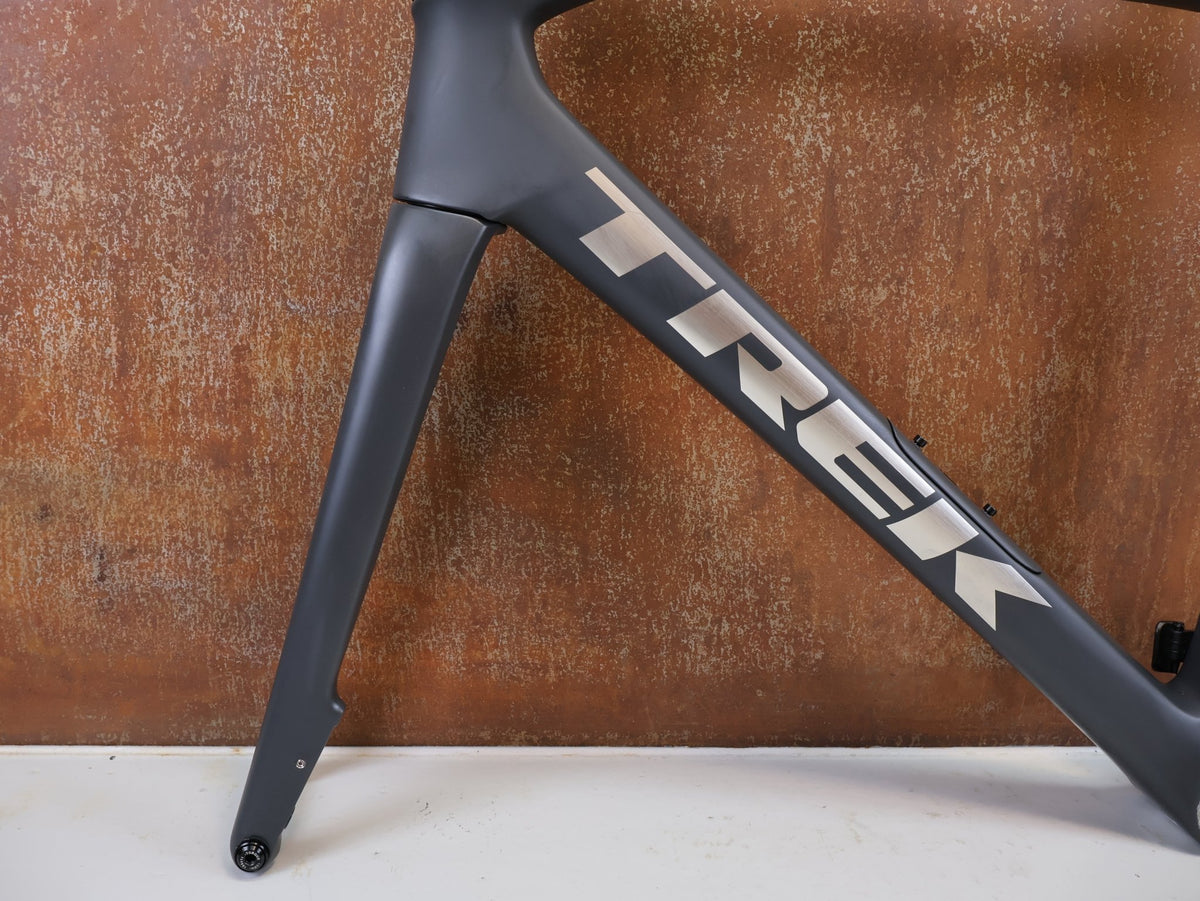

- Fork: Domane SL full carbon, tapered steerer tube, internal cable routing, Flat Mount, 12x100 mm

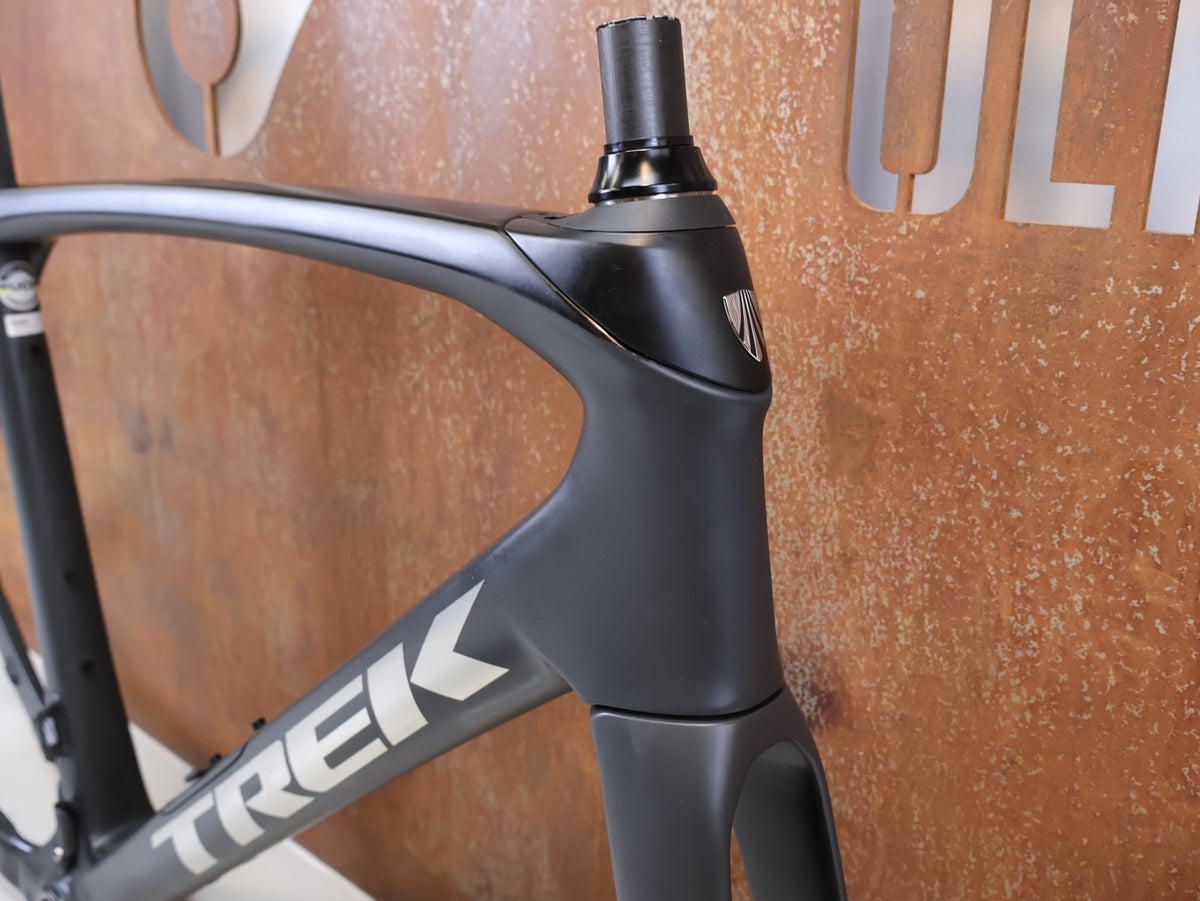

- Steerer tube length: approx. 4 cm carbon extension above the 15 mm headset cap

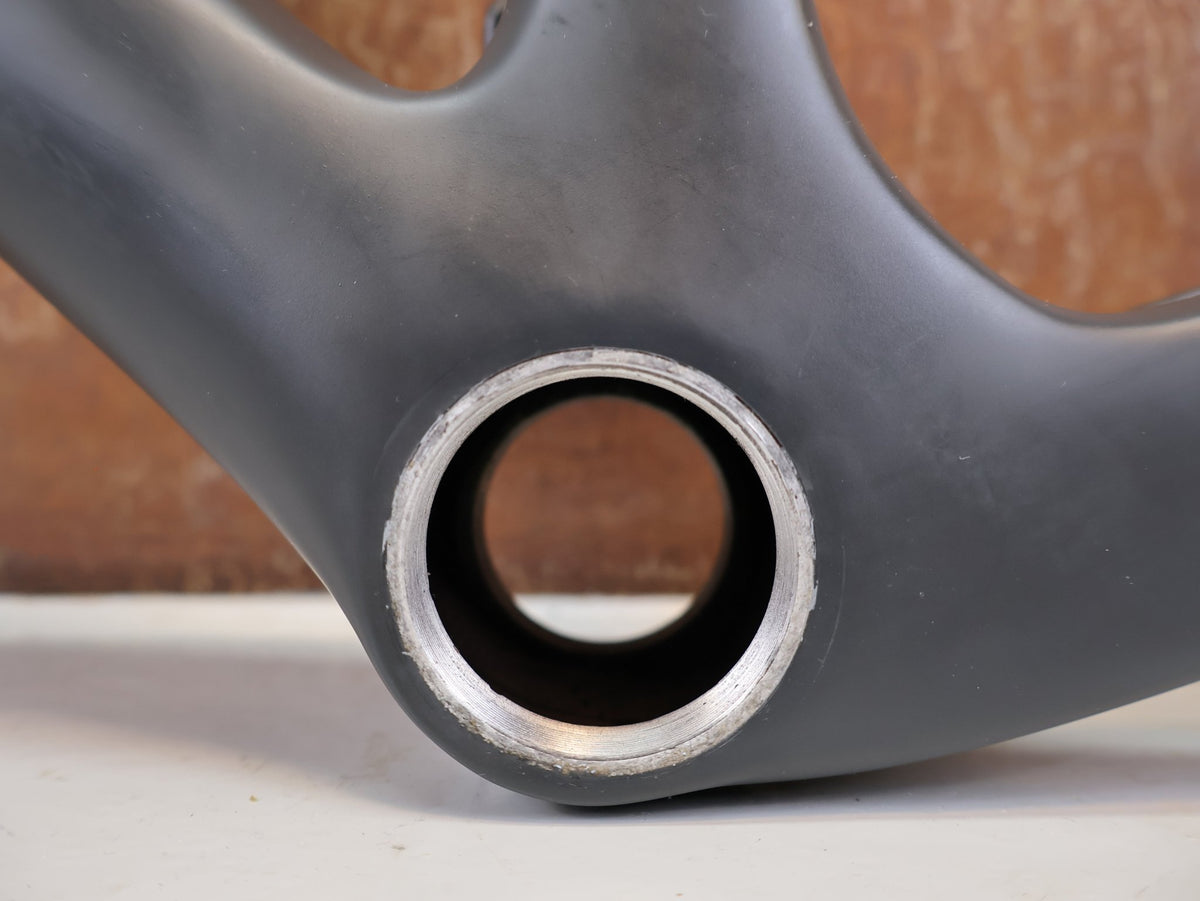

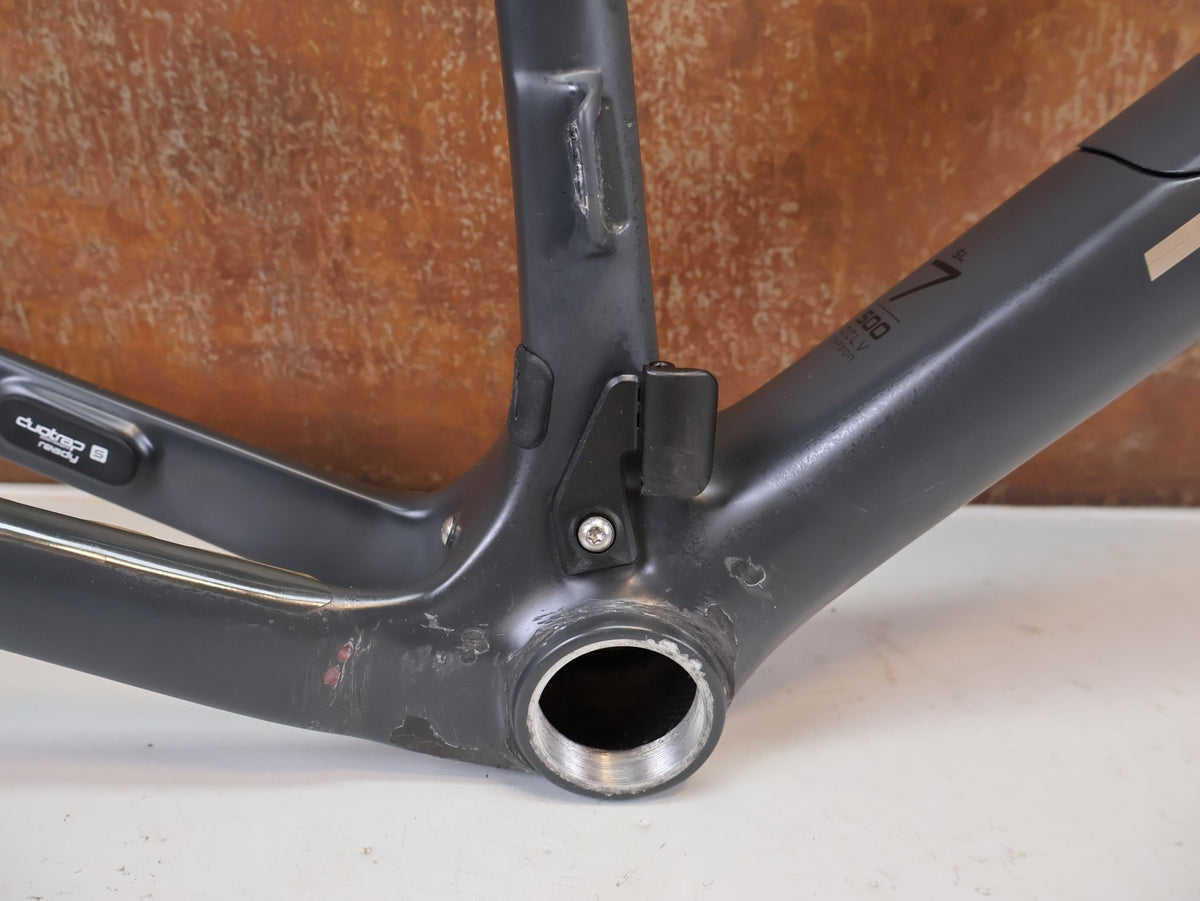

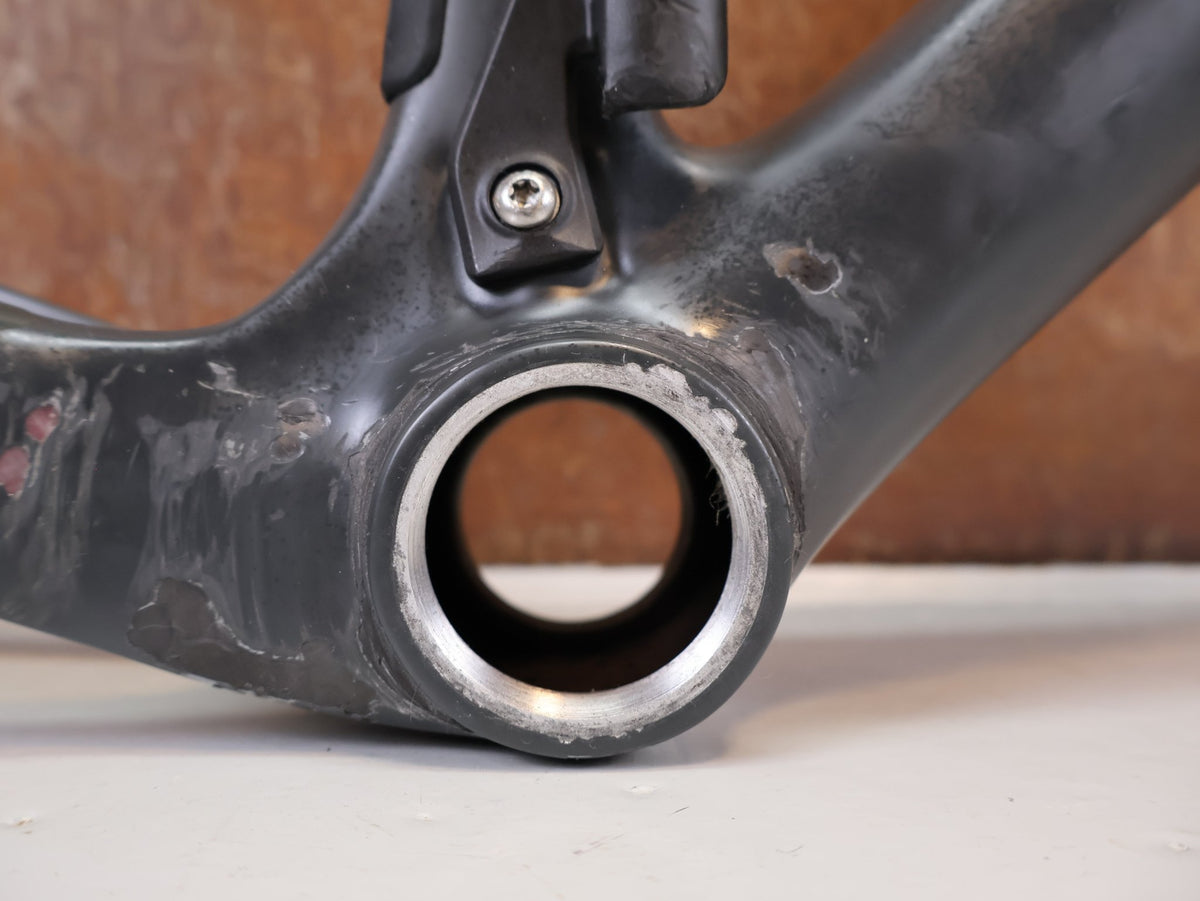

- Bottom bracket standard: T47 threaded bottom bracket shell (bottom bracket installed)
- Brake system: Flat Mount Disc (Front & Rear)

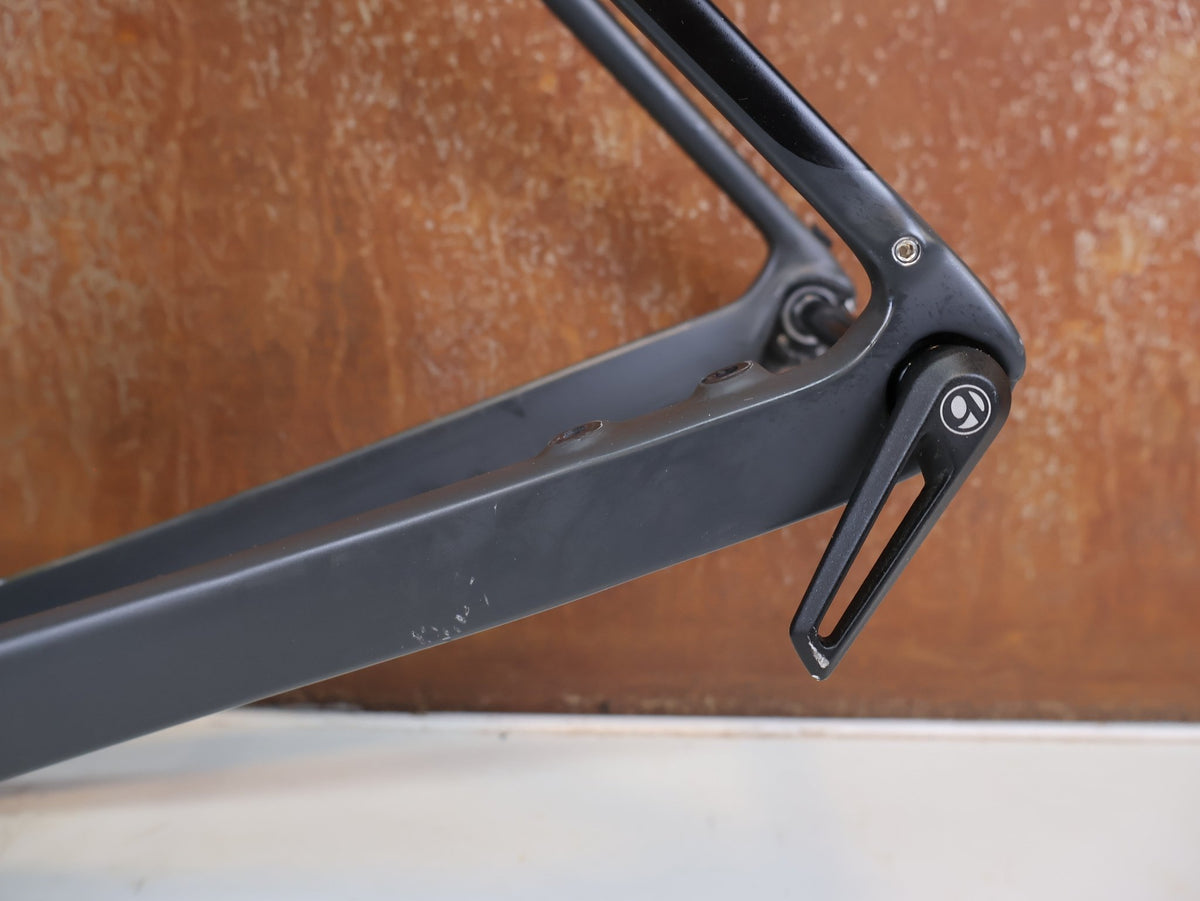

- Axle diameter: Front 12x100 mm / Rear 12x142 mm Bontrager Switch thru-axles (incl. removable lever tool)

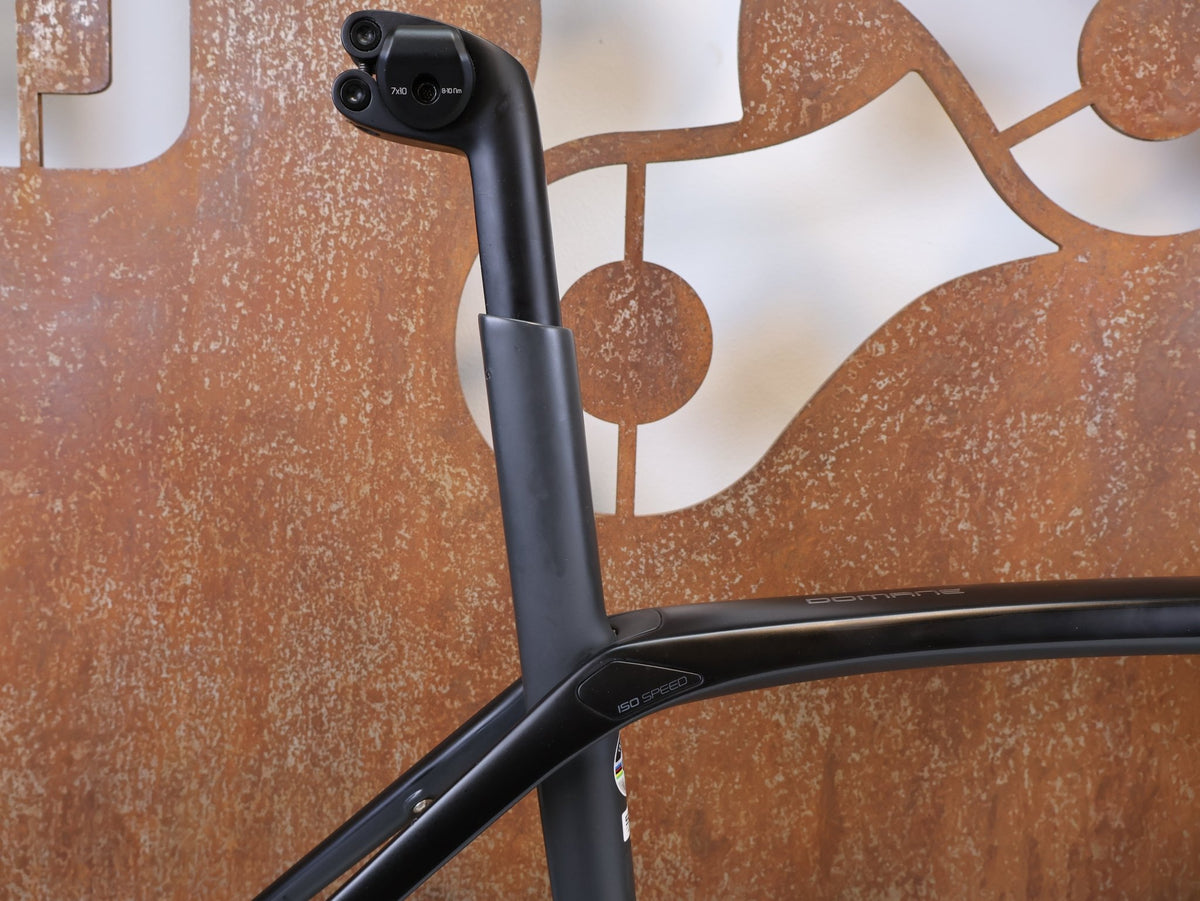

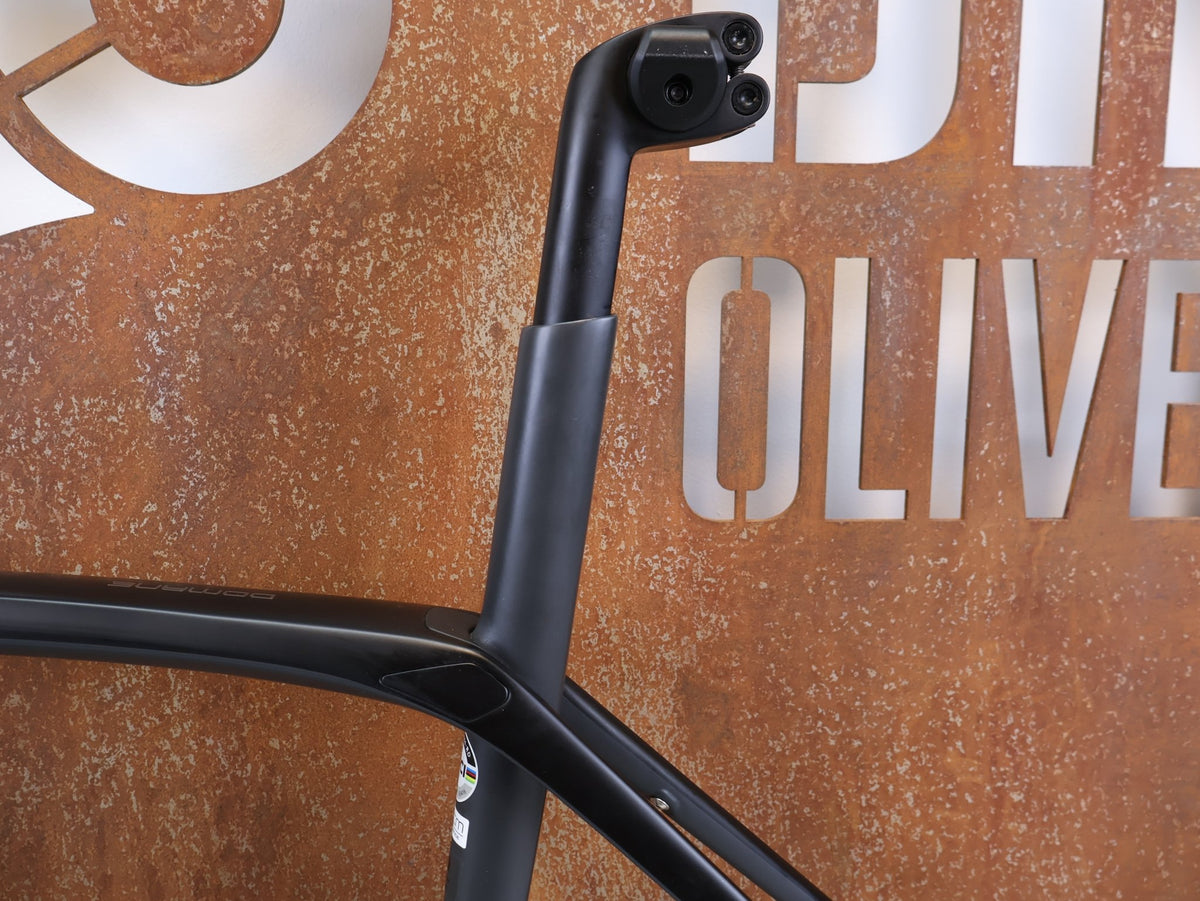

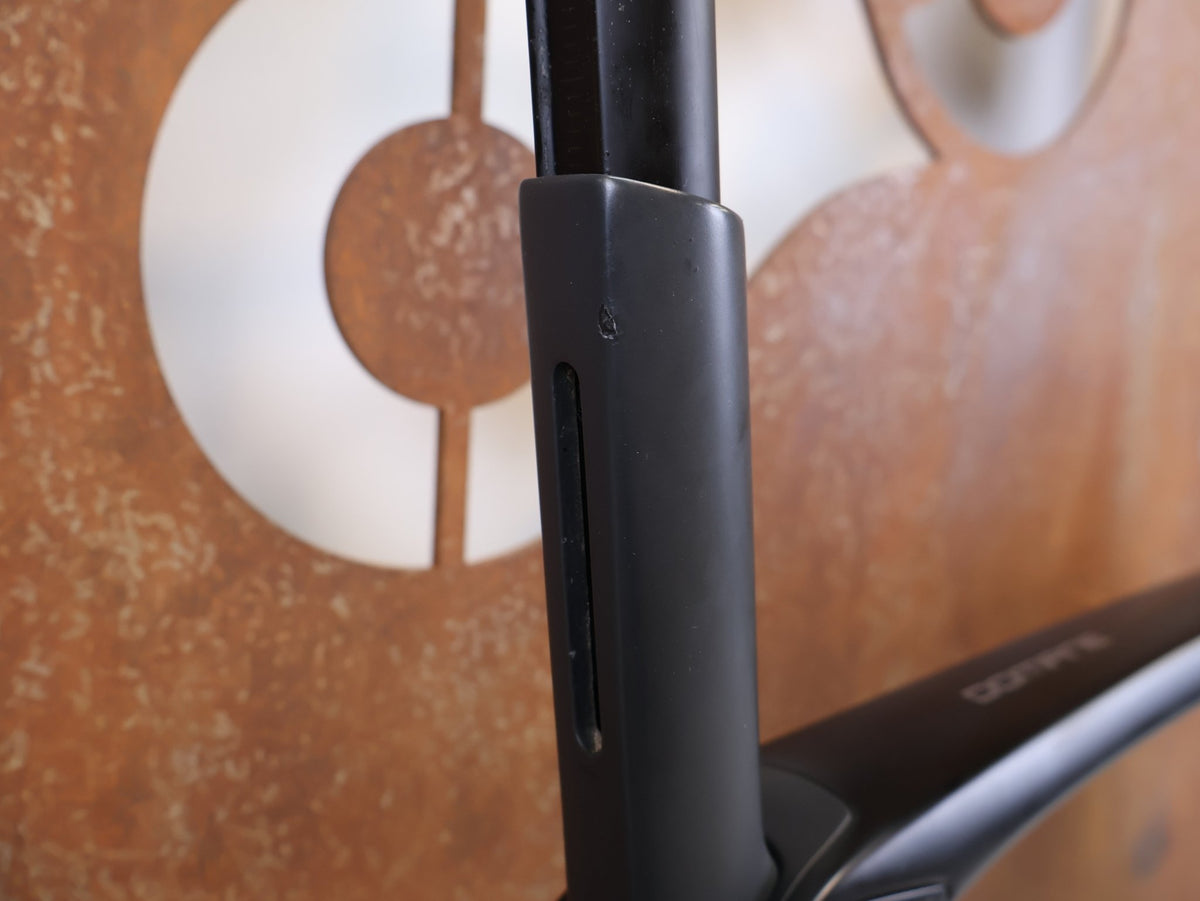

- Seatpost insert: Bontrager internal carbon seatpost insert (short version, 20 mm offset, 7x10 mm oval seatpost clamp, integrated rear light mount)

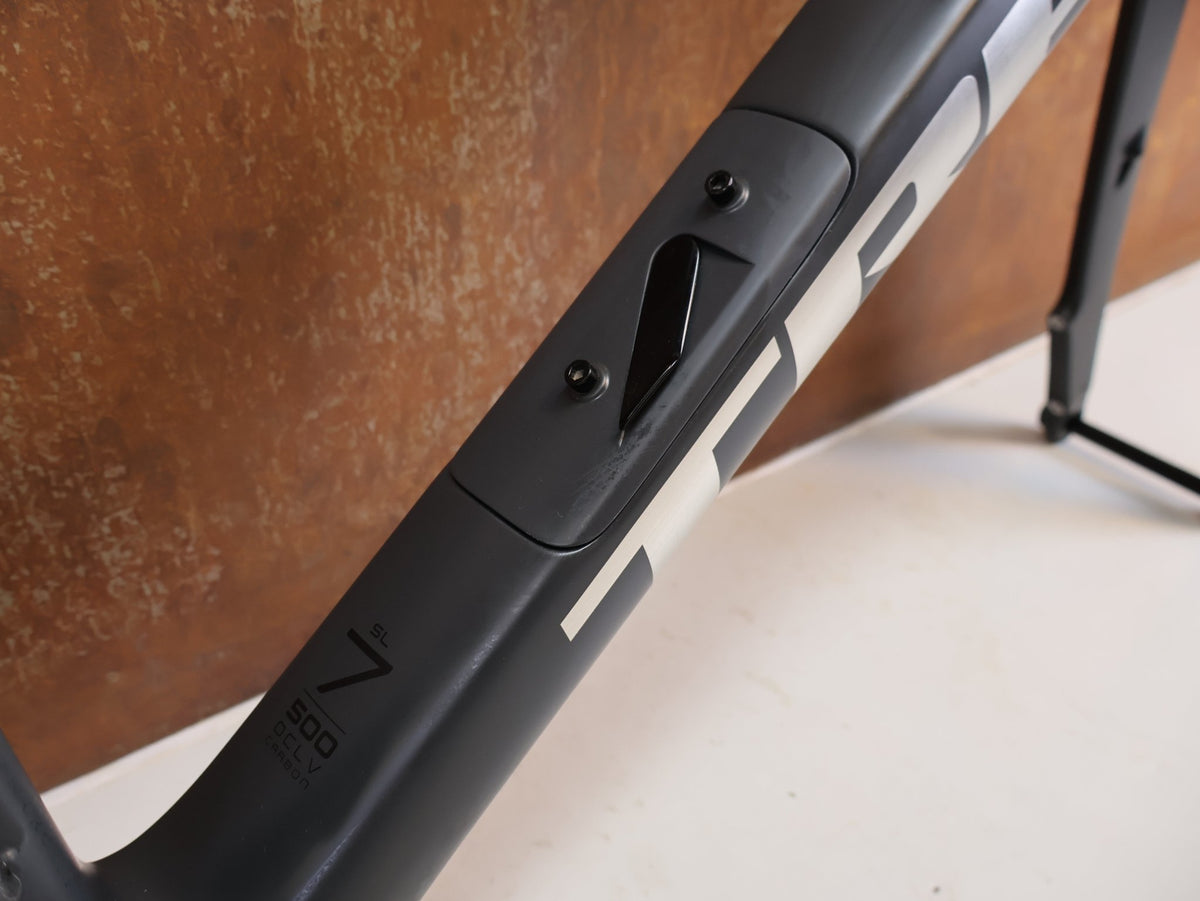

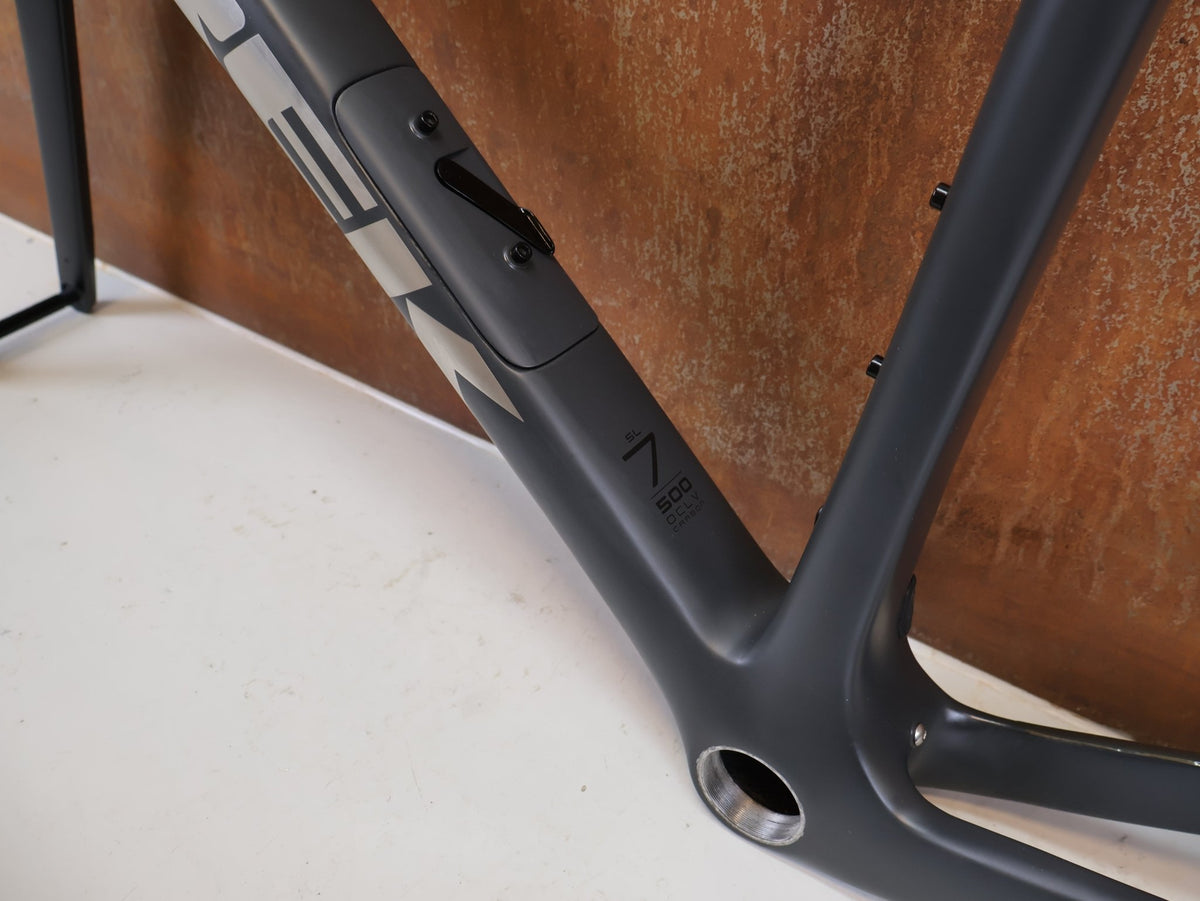

- Special feature: Integrated frame storage compartment in the down tube & concealed mudguard mounts
- Weight: approx. 2.46 kg (as pictured incl. fork, seatpost insert, T47 bottom bracket unit and thru-axles)
- Intended use: Endurance road bike / Gran Fondo / All-road / Gravel
Scope of delivery

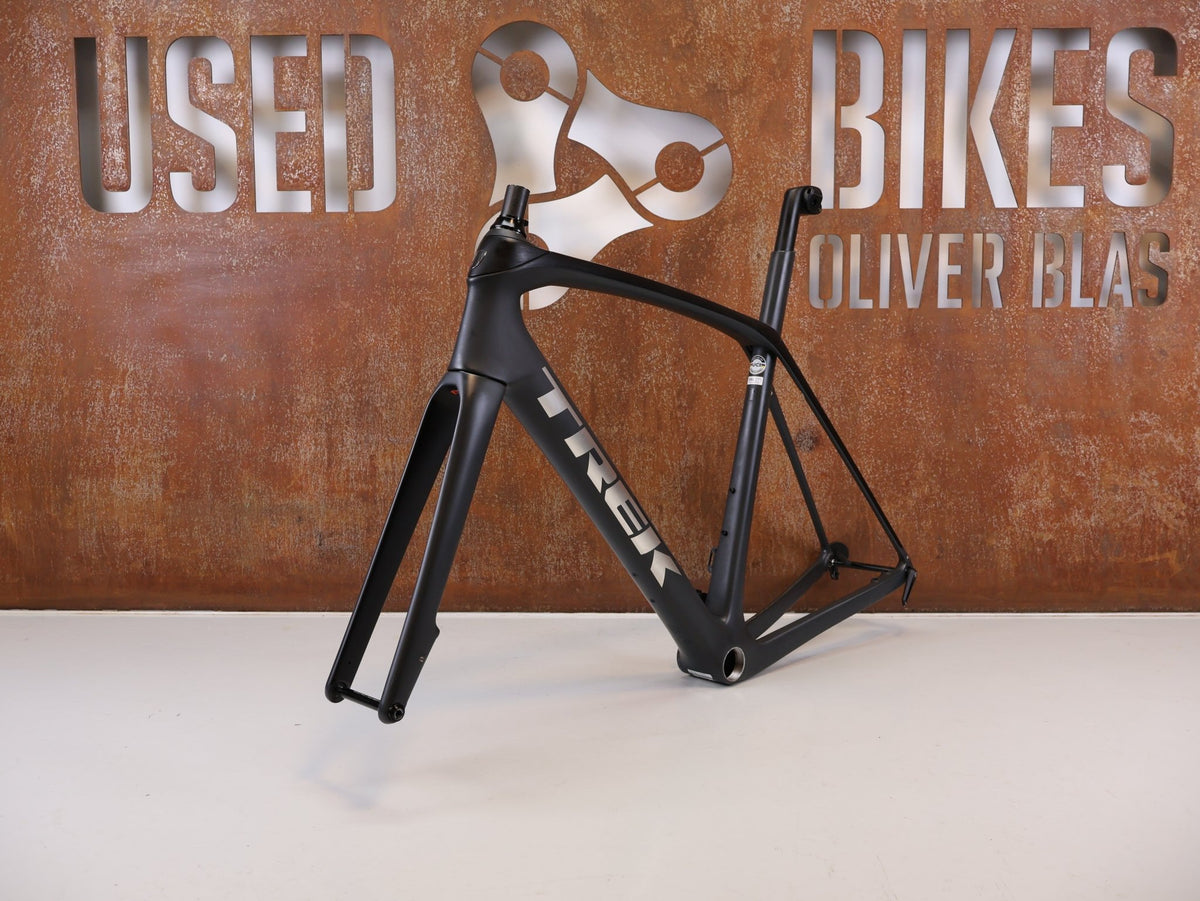

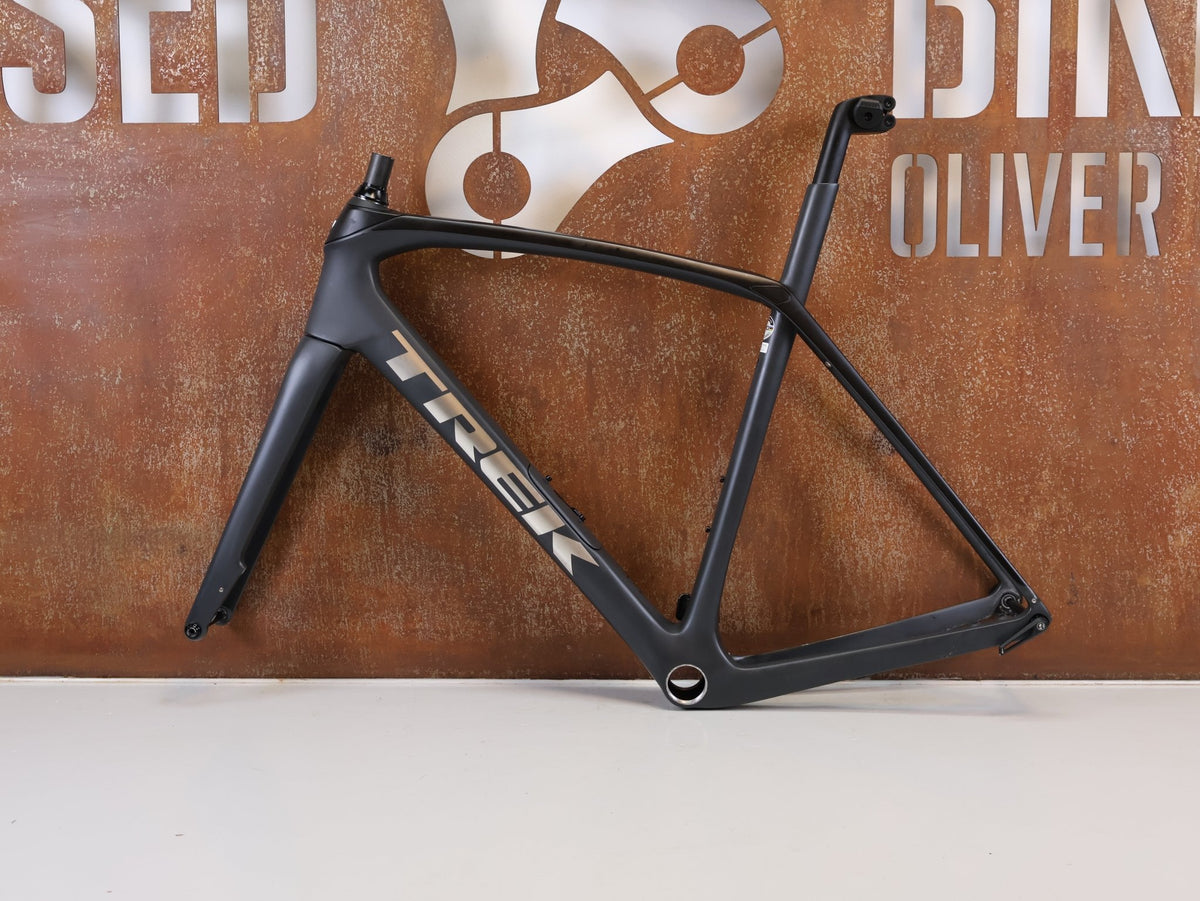

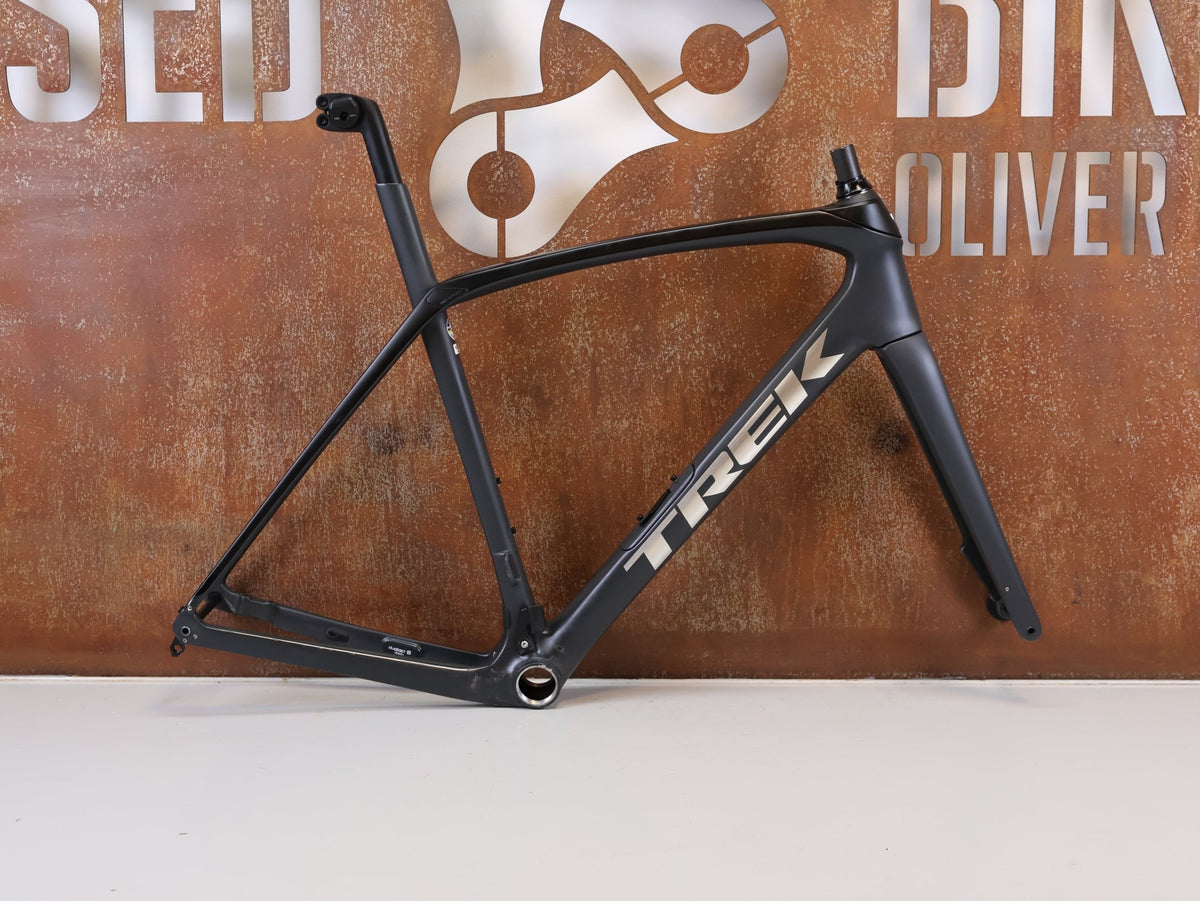

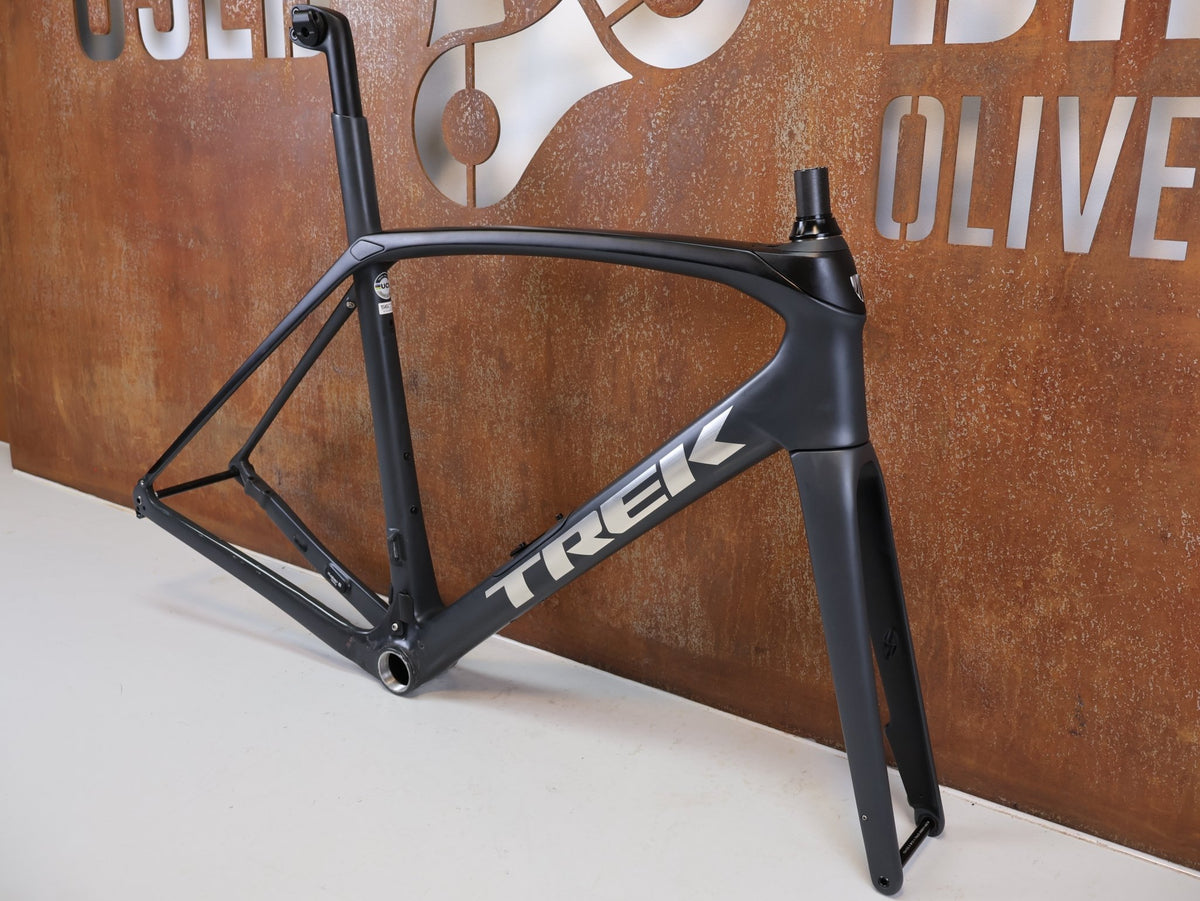

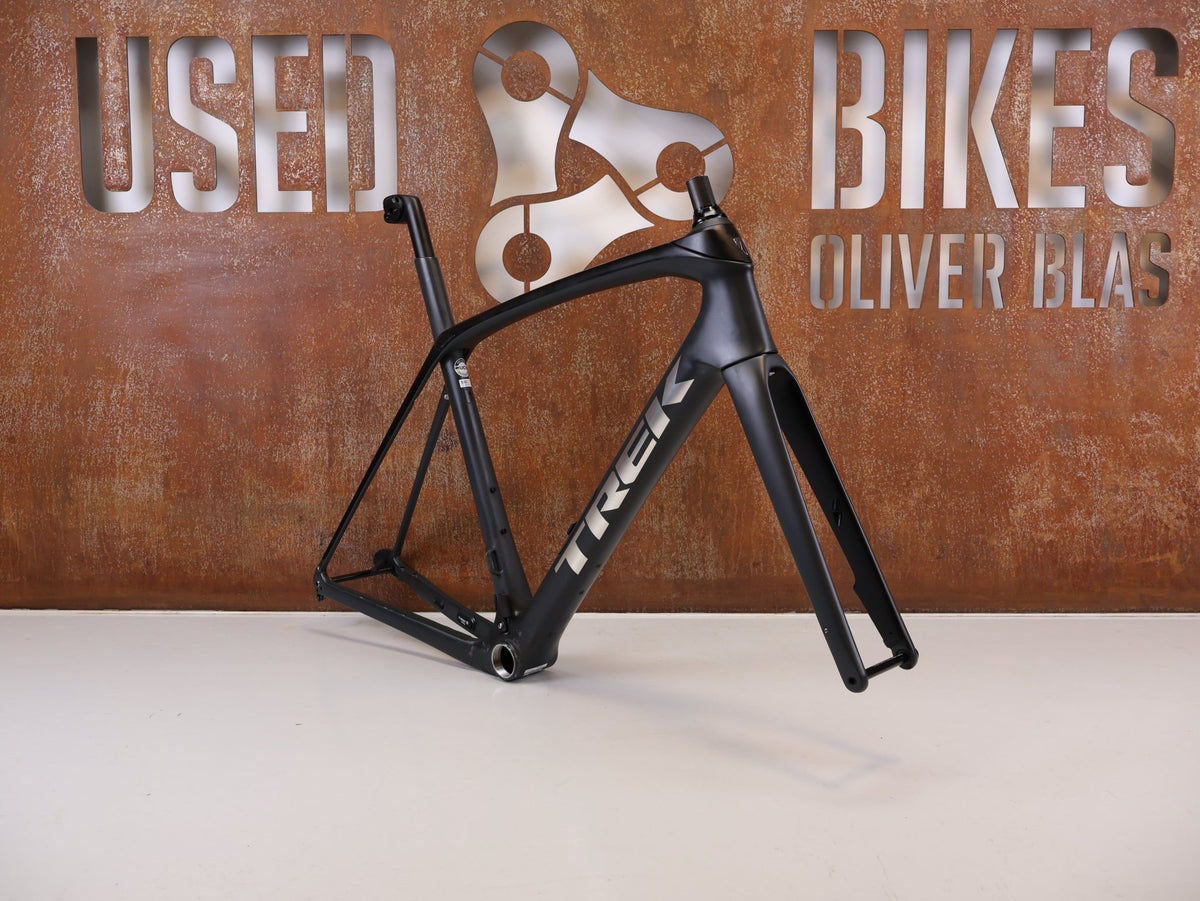

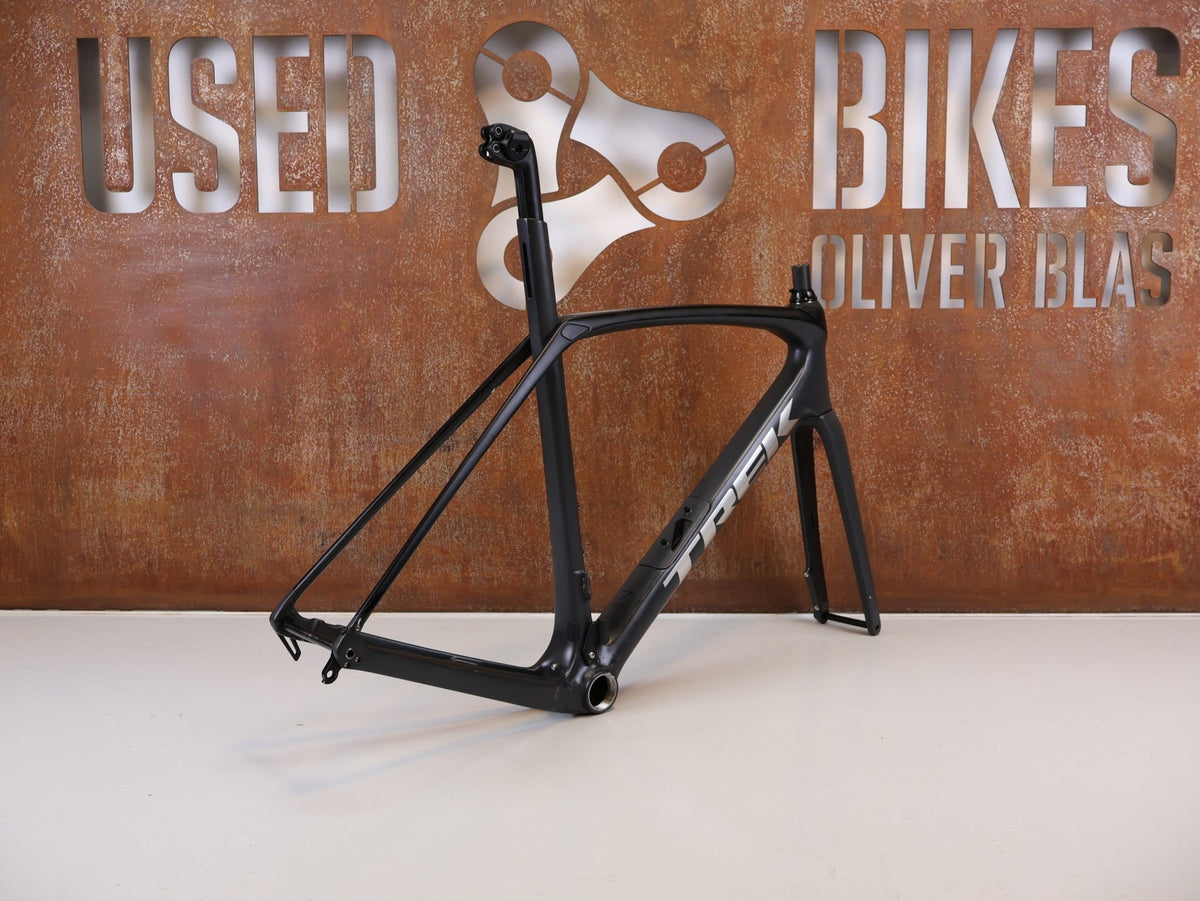

1x Trek Domane SL 7 carbon frame (RH 56 cm, Matte Charcoal/Trek Black)
1x Trek Domane SL full carbon fork (tapered steerer tube)
1x Bontrager internal carbon seatpost insert (short, 20 mm offset, 7x10 mm clamp)
1x pair of Bontrager Switch thru-axles (12x100 mm / 12x142 mm) incl. removable operating lever
1x T47 bottom bracket (installed as pictured)
Headset & small parts as pictured.
Conclusion
Long-distance comfort and true all-road freedom: The Trek Domane SL 7 frame set in 56 cm impresses with up to 38 mm tire clearance (35C with mudguards), IsoSpeed damping, and a low-maintenance T47 bottom bracket at a light total weight of 2.46 kg.
